1832620

Phoenix Contact GMVSTBR 系列 印刷电路板接线端子块 1832620, 12A, 1 kV

Conn Terminal Block F 12 POS 7.62mm Screw ST Cable Mount 12A

得捷:
TERM BLOCK PLUG 12POS 7.62MM

欧时:
1832620 - Phoenix Contact 菲尼克斯 GMVSTBR 系列 印刷电路板接线端子块

艾睿:

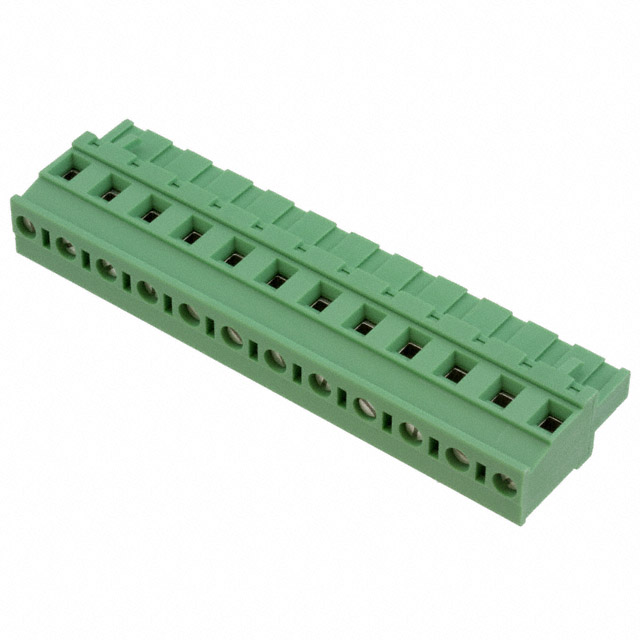

Create a bridge between two sides of a circuit by implementing this 1832620 PCB terminal block from Phoenix Contact. This F connector has 12 contacts that are plated with tin. It has a maximum voltage rating of 630 V. It has a female type gender. It has a straight body orientation. Its pitch is 7.62 mm. This is a 1-row connector. This device has a maximum current rating of 12 A. 1832620 is housed in polyamide. It uses the screw termination method. Its wire is 12-24 AWG. This product is 89.4 mm long, 26 mm tall and 12.6 mm deep.

Verical:
Conn Terminal Block F 12 POS 7.62mm Screw ST Cable Mount 12A

Online Components:
Conn Terminal Block F 12 POS 7.62mm Screw ST Cable Mount 12A

Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 630 V - nominal cross section: 2.5 mm² - ...
