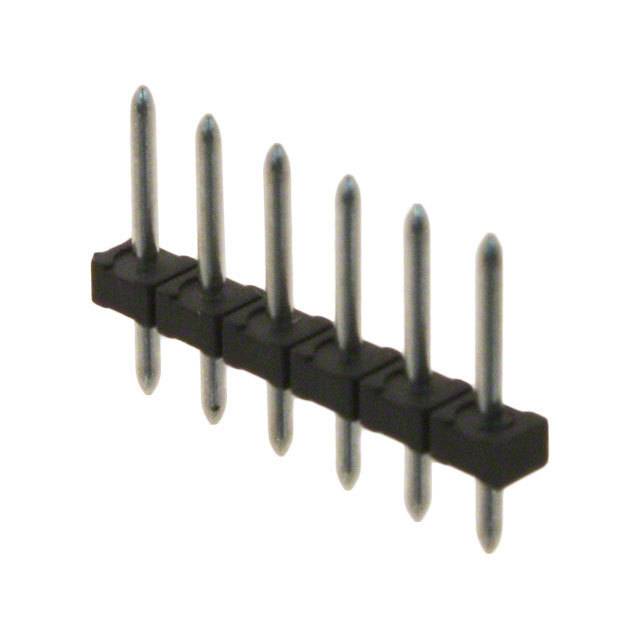

1945135

Conn; Term Blk; Header; 6; 3.5mm; Black; 8A Plug dependent; 250V; 2.5kV

6 针位端子块 接头，公引脚，无罩 0.138"（3.50mm） 垂直 - 通孔

得捷:
TERM BLOCK HDR 6POS VERT 3.5MM

贸泽:
Headers & Wire Housings 6 Pos 3.5mm pitch Thru Hole Pin Strip

艾睿:
Make strong and binding connections on your circuit boards by adopting this unshrouded 1945135 connector from Phoenix Contact. This M connector has 6 contacts that are plated with tin. It has a straight body orientation. It has a male type gender. This is a 1-row connector. It has a maximum voltage rating of 250 V. Its pitch is 3.5 mm. This device has a maximum current rating of 8 A. This product is 21 mm long, 7.2 mm tall and 2.8 mm deep. It uses the solder termination method. 1945135 is housed in black polyamide.

Allied Electronics:
Conn; Term Blk; Header; 6; 3.5 mm; Black; 8 A Plug dependent; 250 V; 2.5 kV

Verical:
Conn Unshrouded Header M 6 POS 3.5mm Solder ST Thru-Hole

MASTER:
Pin strip - nominal current: 8 A - rated voltage III/2: 250 V - nominal cross section: 0.5 mm² - number of positions: 6 - pitch: 3.5 mm - color: black - contact surface: Tin - mounting: THR soldering - pin layout: Linear pinning - solder pin [P]: 3.8 mm

Online Components:
Conn Unshrouded Header M 6 POS 3.5mm Solder ST Thru-Hole

Electro Sonic:
Pin strip - nominal current: 8 A - rated voltage III/2: 250 V - nominal cross section: 0.5 mm² - ...
