12 位置 5.08 mm 间距 30-12 AWG 欧式接线端子
12 Position Terminal Block Plug, Female Sockets 0.200" 5.08mm 90° Free Hanging In-Line
得捷:
TERM BLOCK PLUG 12POS 5.08MM
贸泽:
Pluggable Terminal Blocks TERMI-BLOK VERT PLUG STACK
艾睿:

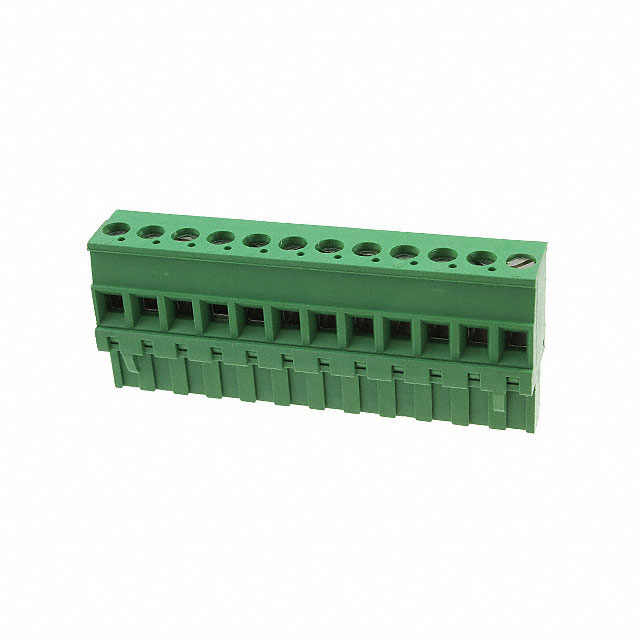

Need to ensure strong connections between circuits? This eurostyle block 1-284047-2 PCB terminal block from TE Connectivity will do just that! This F connector&s;s 12 contacts that are made out of phosphor bronze and plated with tin/nickel. It has a female type gender. Its pitch is 5.08 mm. This is a 1-row connector. It has a straight body orientation. It has a maximum voltage rating of 300 VAC. 1-284047-2 is housed in polyamide 6/6. This device has a maximum current rating of 15 A/contact. This product is 60.96 mm long, 25 mm tall and 12.5 mm deep. Its wire is 12-30 AWG. It uses the screw termination method.
安富利:
Conn Terminal Block F 12 POS 5.08mm Screw ST Cable Mount 15A/Contact
Powell:
Terminal Block Connectors
Electro Sonic:
TERMI-BLOK VERTICAL PLUG STACK
