1757530

间距5mm 9位 插座 12A 320V 弯插 封边

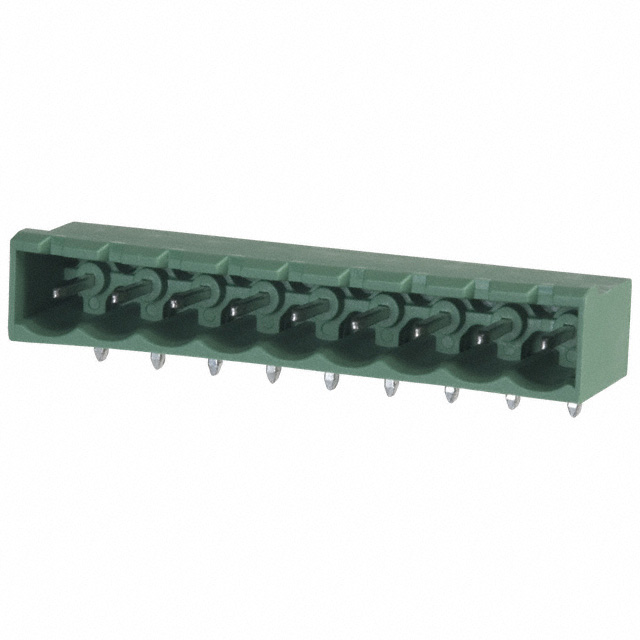

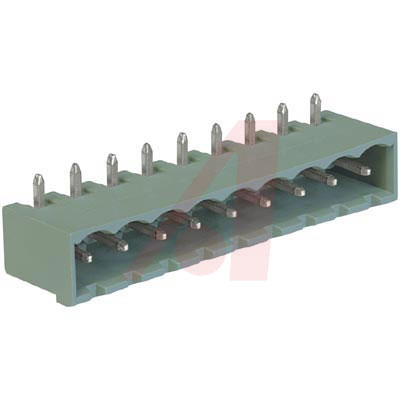

9 针位端子块 接头，公引脚，带罩（4 面） 0.197"（5.00mm） 90°，直角 - 通孔

得捷:
TERM BLOCK HDR 9POS 90DEG 5MM

艾睿:
This shrouded 1757530 header connector from Phoenix Contact is used for jumper posts to support physical configuration options on printed circuit boards. This HDR connector has 9 contacts that are plated with tin. It has a maximum voltage rating of 320 V. This is a 1-row connector. It has a header type gender. It has a right angle body orientation. Its pitch is 5 mm. This device has a maximum current rating of 12 A. This product is 47 mm long, 8.6 mm tall and 12 mm deep. 1757530 is housed in green polybutylene terephthalate. It uses the solder termination method.

Allied Electronics:
Conn; TermBlk; PCB; Header; SnglLvl; 90DegAngl; Sldr; 9Pole; 5mmPitch; COMBICON

MASTER:
Conn Shrouded Header 4 Sides HDR 9 POS 5mm Solder RA Thru-Hole

Online Components:
Conn Shrouded Header HDR 9 POS 5mm Solder RA Thru-Hole

Electro Sonic:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
