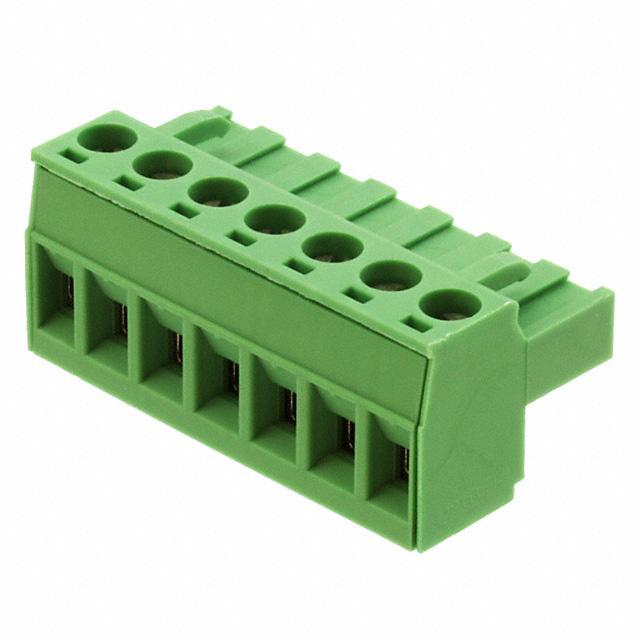

Phoenix Contact COMBICON MSTBT 系列 5mm 节距 7 路 母 绿色 插头 1779880, 螺钉端接
7 针位端子块 插头，母插口 0.197"（5.00mm） - 180° 自由悬挂
得捷:
TERM BLOCK PLUG 7POS STR 5MM
欧时:
Phoenix Contact 1779880 COMBICON MSTBT 系列 5mm 节距 7 路 母 插头, 螺钉端接 绿色
贸泽:
Pluggable Terminal Blocks 7 Pos 5mm pitch Plug 24-12 AWG Screw
艾睿:
Never worry about wires becoming undone by implementing this 1779880 PCB terminal block developed by Phoenix Contact. This F connector has 7 contacts that are plated with tin. Its pitch is 5 mm. It has a maximum voltage rating of 320 V. It has a female type gender. This is a 1-row connector. It has a straight body orientation. This device has a maximum current rating of 12 A. 1779880 is housed in polyamide. This product is 35 mm long, 15 mm tall and 18.2 mm deep. Its wire is 12-24 AWG. It uses the screw termination method.
Verical:
Conn Terminal Block F 7 POS 5mm Screw ST Cable Mount 12A
MASTER:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 7 - pitch: 5 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin
Online Components:
Conn Terminal Block F 7 POS 5mm Screw ST Cable Mount 12A
Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
