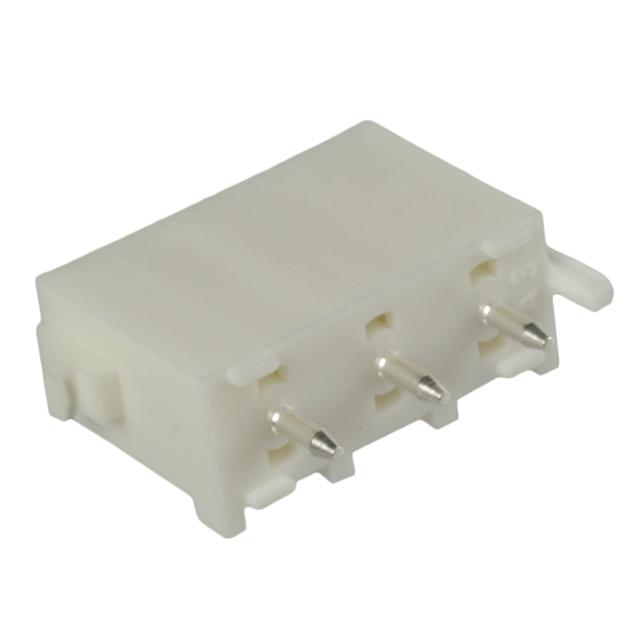

194017-1

通用 Mate-N-Lok II 3 位置 白色 销锁 插头

PIN ASSY..070

Product Highlights

Header

Universal MATE-N-LOK II

Not CompactPCI

6.35 mm Centerline, Matrix

Number of Circuits = 3

得捷:
CONN HEADER VERT 3POS 6.35MM

立创商城:
针座

艾睿:
Safety is an important concern when designing electronic devices. TE Connectivity&s;s wire to board 194017-1 header connector helps protect your equipment from accidental shortages. This HDR connector&s;s 3 contacts that are made out of copper alloy and plated with silver. Its pitch is 6.35 mm. It has a maximum voltage rating of 600 VAC. This is a 1-row connector. It has a header type gender. It has a straight body orientation. This device has a maximum current rating of 19 A/contact. It uses the solder termination method. 194017-1 is housed in white nylon. This product is 14.73 mm tall.

安富利:
Conn Wire to Board HDR 3 POS 6.35mm Solder ST Thru-Hole

Chip1Stop:
Conn Wire to Board HDR 3 POS 6.35mm Solder ST Thru-Hole

Verical:
Conn Power HDR 3 POS 6.35mm Solder ST Thru-Hole Bag

Newark:
# AMP - TE CONNECTIVITY  194017-1  Rectangular Connector, Universal MATE-N-LOK II Series, 3 Contacts, Header, 6.35 mm, Through Hole

MASTER:
HIGH CURRENT VERT. PIN HEADER ASSY, MATE-NLOK II, 3 CIRCUIT

Powell:
.250" Centerline, 600 V, 19 - 36 A max

Online Components:
PIN ASSY..070

Electro Sonic:
PIN ASSY..070
