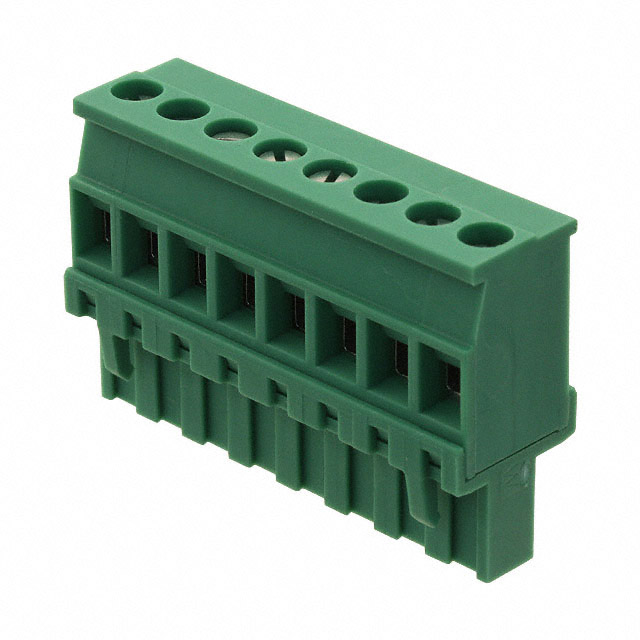

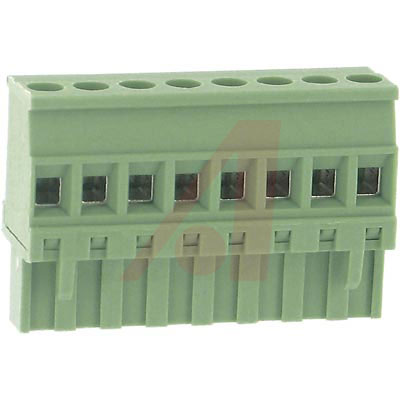

1792074

Conn Terminal Block F 8POS 5mm Screw ST Cable Mount 12A

Terminal Block Plug, 12 A Nominal Current, 250 V Nominal Voltage, 5 mm Pitch, Screw Connection

* Connection in accreditation with standard EN-VDE

* Inflammability class accreditation to UL 94 V0

* Polyamide Insulating Material

* Voltage: 300, Amps: 10, AWG: 30-12

* Connection Point Facing the Smooth Wall of the Header

得捷:
TERM BLOCK PLUG 8POS 90DEG 5MM

艾睿:
Perfect for troubleshooting this 1792074 PCB terminal block manufactured from Phoenix Contact will help isolate sections of a circuit. This F connector has 8 contacts that are plated with tin. It has a female type gender. Its pitch is 5 mm. This is a 1-row connector. It has a straight body orientation. It has a maximum voltage rating of 250 V@IEC|300V@UL. 1792074 is housed in polyamide. This device has a maximum current rating of 12@IEC|10@UL A. It uses the screw termination method. Its wire is 12-24@IEC|12-30@UL AWG. This product is 40 mm long, 26 mm tall and 12.6 mm deep.

Allied Electronics:
Plug; Terminal Block; 12 A; 250 V; 5 mm; 24 AWG⁄ kcmil Min.; 8; Screw; 4

Verical:
Conn Terminal Block F 8 POS 5mm Screw ST Cable Mount 12A

MASTER:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 8 - pitch: 5 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin

Online Components:
Conn Terminal Block F 8 POS 5mm Screw ST Cable Mount 12A

Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
