1844304

间距3.5mm 11位 插座 8A 160V 弯插

Plug Component, 10 A Nominal Current, 250 V Nominal Voltage, 5.08 mm Pitch

* 11 Position header

* 8 A Nominal current

* 160 V Rated voltage

* 3.5 mm Pitch

* Soldering mount

* Polyamide Insulating Material

* Voltage: 300 V, Amps: 8 A

* Operated Under No Load Conditions

得捷:
TERM BLOCK HDR 11POS 90DEG 3.5MM

艾睿:

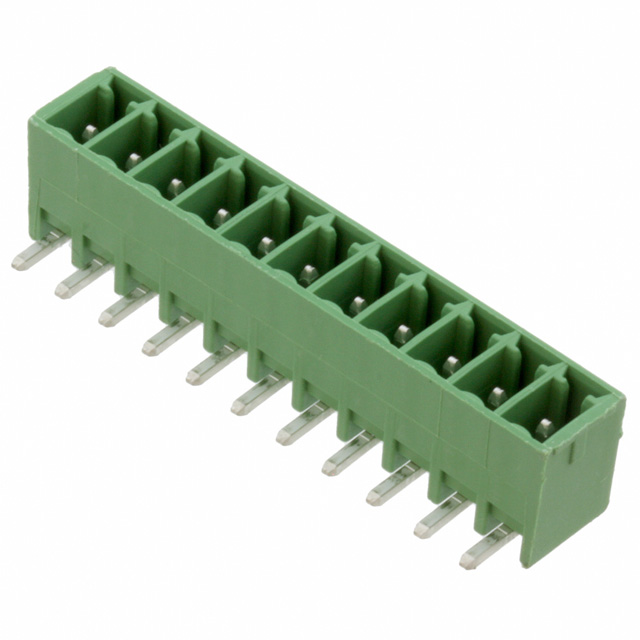

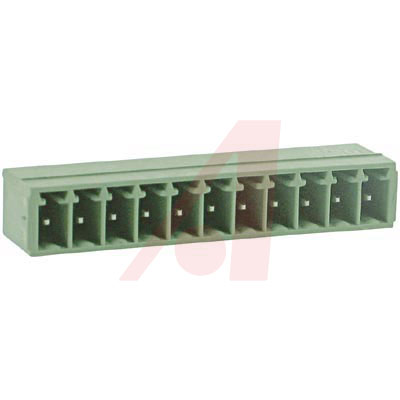

Easily mount this shrouded 1844304 header connector from Phoenix Contact onto your PCB project to support a variety of physical configuration options. This HDR connector has 11 contacts that are plated with tin. Its pitch is 3.5 mm. It has a right angle body orientation. It has a header type gender. This is a 1-row connector. It has a maximum voltage rating of 160 V. This device has a maximum current rating of 8 A. 1844304 is housed in green polybutylene terephthalate. This product is 39.9 mm long, 7.25 mm tall and 9.2 mm deep. It uses the solder termination method.

Allied Electronics:
Conn; TermBlk; PCB; Header; SnglLvl; 90DegAngl; Sldr; 11Pole; 3.5mmPitch; COMBICON

Verical:
Conn Shrouded Header 4 Sides HDR 11 POS 3.5mm Solder RA Thru-Hole

MASTER:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - number of positions: 11 - pitch: 3.5 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.

Online Components:
Conn Shrouded Header HDR 11 POS 3.5mm Solder RA Thru-Hole

Electro Sonic:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
