1-284507-0

10 位置 3.81 mm 间距 30-14 AWG 欧式接线端子

10 针位端子块 插头，母插口 0.150"（3.81mm） - 180° 自由悬挂

得捷:
TERM BLOCK PLUG 10POS STR 3.81MM

艾睿:

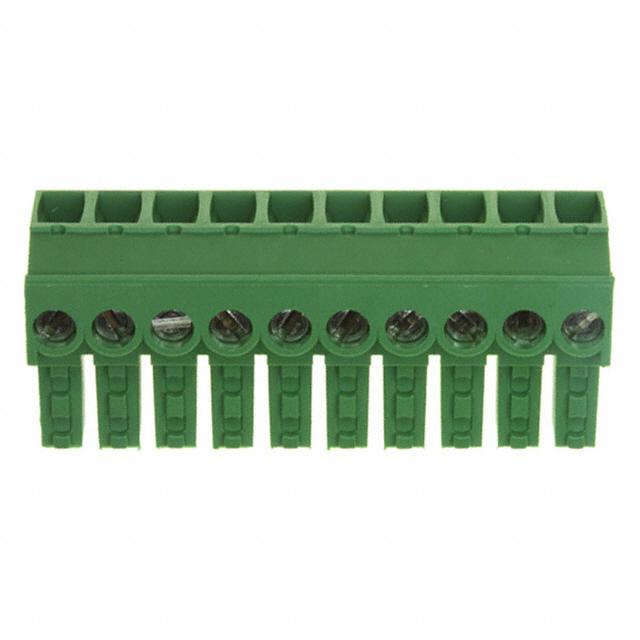

Connect test equipment together with other components by using this eurostyle block 1-284507-0 PCB terminal block from TE Connectivity. This F connector&s;s 10 contacts that are made out of phosphor bronze and plated with tin. Its pitch is 3.81 mm. This is a 1-row connector. It has a right angle body orientation. It has a female type gender. It has a maximum voltage rating of 300 VAC. 1-284507-0 is housed in polyamide 6/6. This device has a maximum current rating of 11 A/contact. It uses the screw termination method. This product is 38.1 mm long, 11.1 mm tall and 15.5 mm deep. This quick disconnect terminal has an operating temperature of -40 to 105 °C. Its wire is 14-30 AWG.

安富利:
Conn Terminal Block F 10 POS 3.81mm Screw RA Cable Mount 11A/Contact

Chip1Stop:
Conn Eurostyle Block F 10 POS 3.81mm Screw RA Cable Mount 11A/Contact

Verical:
Conn Eurostyle Block F 10 POS 3.81mm Screw RA Cable Mount 11A/Contact

MASTER:
TERMINAL BLOCK PLUG STACKING 3.81mm PITCH

Powell:
Terminal Block Connectors

Online Components:
10 P. TERMI-BLOK PLUG STAC 3,8

Electro Sonic:
10 P. TERMI-BLOK PLUG STAC 3,8
