1758021

Phoenix Contact CLASSIC COMBICON MSTBV 5.08mm 端子块管座专业的 Phoenix Contact MSTBV 系列线对板 5.08 mm 节距连接器5.08 mm 节距 线对板 提供各种位置 焊接端子 绿色 ### Phoenix Contact COMBICON 5.08mm 两件式端子块

Contact CLASSIC COMBICON MSTBV 5.08mm 端子块管座

专业的 Phoenix Contact MSTBV 系列线对板 5.08 mm 节距

5.08 mm 节距

线对板

提供各种位置

焊接端子

绿色

得捷:
TERM BLOCK HDR 3POS VERT 5.08MM

欧时:
Phoenix Contact PCB 接线端子块 COMBICON MSTBV 系列 3路 5.08mm节距 1排 直向 1758021, 焊接端接, 12A

立创商城:
板端/插座-开口 5.08mm 排数:1 每排P数:3 直针

贸泽:
Pluggable Terminal Blocks 3 Pos 5.08mm pitch Through Hole Header

艾睿:

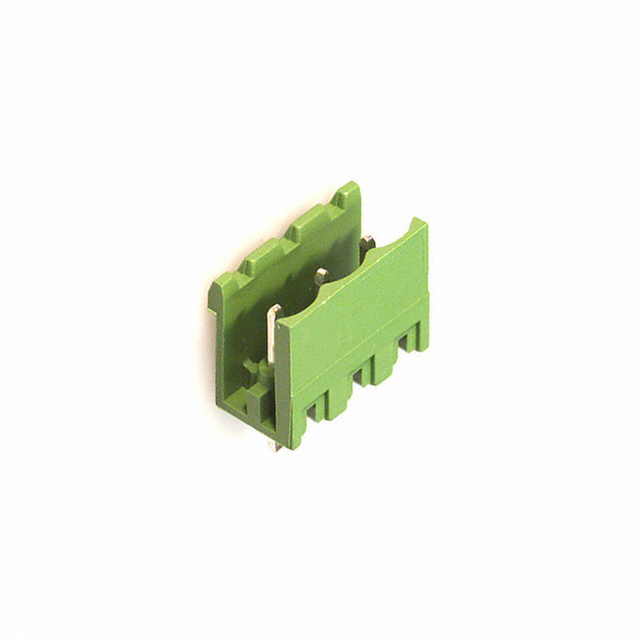

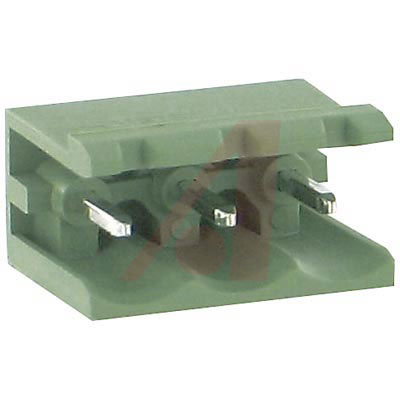

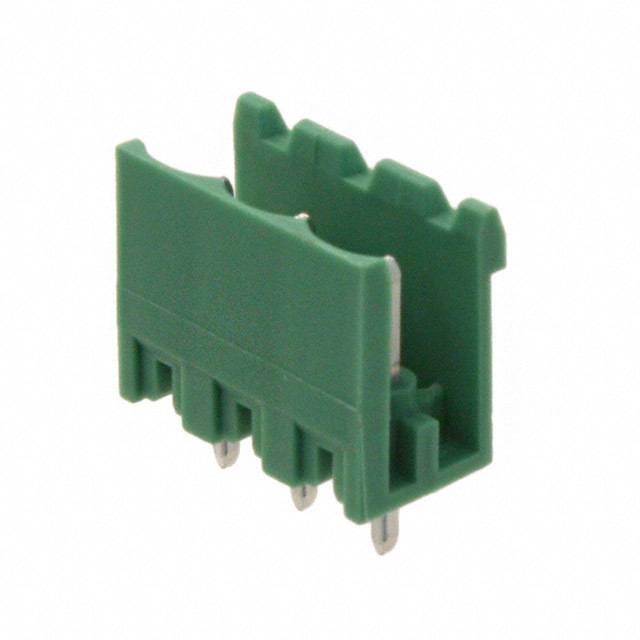

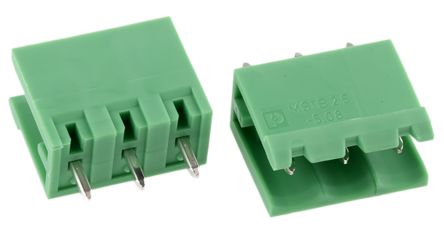

Easily mount this shrouded 1758021 header connector from Phoenix Contact onto your PCB project to support a variety of physical configuration options. This HDR connector has 3 contacts that are plated with tin. It has a straight body orientation. Its pitch is 5.08 mm. This is a 1-row connector. It has a header type gender. It has a maximum voltage rating of 320 V. This device has a maximum current rating of 12 A. It uses the solder termination method. This product is 15.24 mm long, 12 mm tall and 8.6 mm deep. 1758021 is housed in green polybutylene terephthalate.

Allied Electronics:
Conn; TermBlk; PCB; Header; SnglLvl; Sldr; 3Pole; 5.08mmPitch; COMBICON

Verical:
Conn Shrouded Header 2 Sides HDR 3 POS 5.08mm Solder ST Top Entry Thru-Hole

MASTER:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 3 - pitch: 5.08 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3

Online Components:
Conn Shrouded Header HDR 3 POS 5.08mm Solder ST Thru-Hole

Electro Sonic:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
