Phoenix Contact MINI COMBICON MC 和 MCV 3.5mm 印刷电路板端子块管座MINI COMBICON MC 和 MCV 系列 3.5mm 节距插入式单级直角印刷电路板通孔安装有罩端子块管座。这些 MINI COMBICON MC 端子块提供螺纹法兰和锁定及释放机制### Phoenix Contact MINI COMBICON 3.5mm 两件式端子块
Contact MINI COMBICON MC 和 MCV 3.5mm 印刷电路板端子块管座
MINI COMBICON MC 和 MCV 系列 3.5mm 节距插入式单级直角印刷电路板通孔安装有罩端子块管座。这些 MINI COMBICON MC 端子块提供螺纹法兰和锁定及释放机制
得捷:

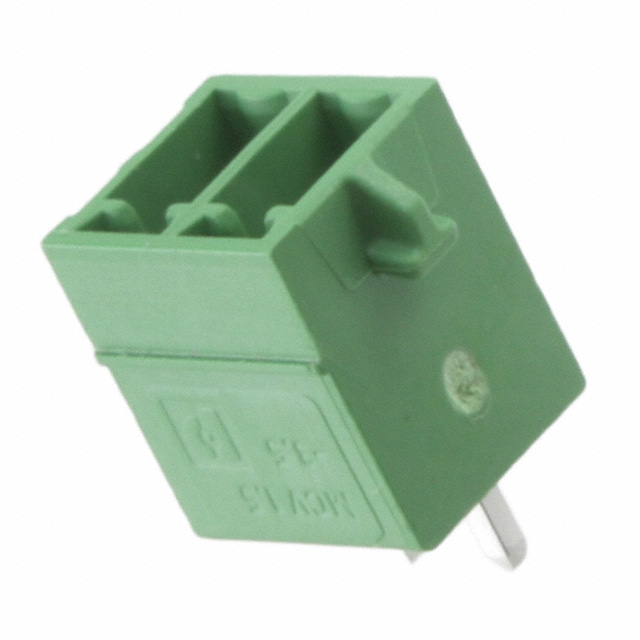

TERM BLOCK HDR 2POS VERT 3.5MM
欧时:
Phoenix Contact PCB 接线端子块 COMBICON MCV 系列 2路 3.5mm节距 1731471, 焊接端接, 8A
贸泽:
Pluggable Terminal Blocks 2 Pos 3.5mm pitch Through Hole Header
艾睿:
Easily mount this wire to board 1731471 header connector from Phoenix Contact onto your PCB project to support a variety of physical configuration options. This HDR connector has 2 contacts that are plated with tin. It has a straight body orientation. Its pitch is 3.5 mm. It has a header type gender. This is a 1-row connector. It has a maximum voltage rating of 160 V. This device has a maximum current rating of 8 A. This product is 8.4 mm long, 9.2 mm tall and 7.25 mm deep. It uses the solder termination method. 1731471 is housed in green polybutylene terephthalate.
Verical:
Conn Wire to Board HDR 2 POS 3.5mm Solder ST Thru-Hole
MASTER:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - number of positions: 2 - pitch: 3.5 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.4
Online Components:
Conn Wire to Board HDR 2 POS 3.5mm Solder ST Thru-Hole
Electro Sonic:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
