1804690

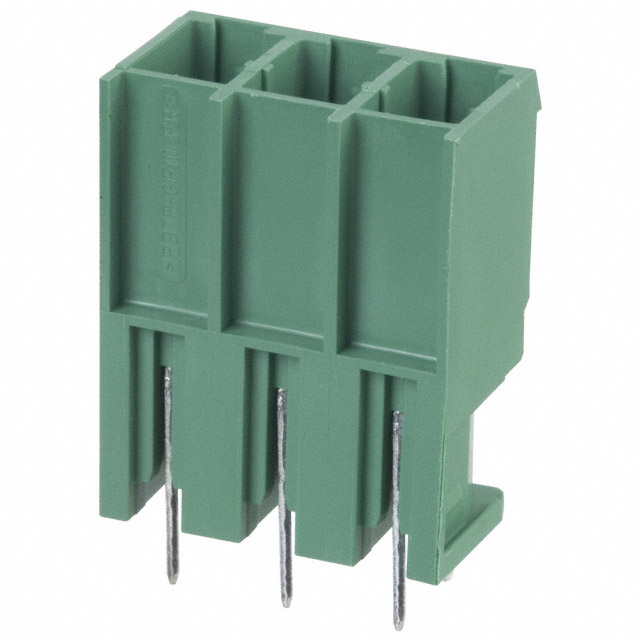

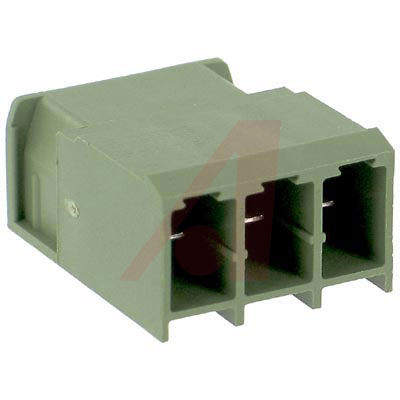

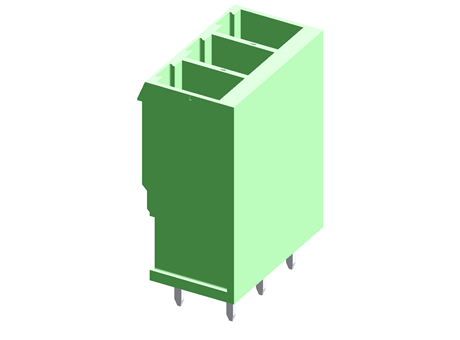

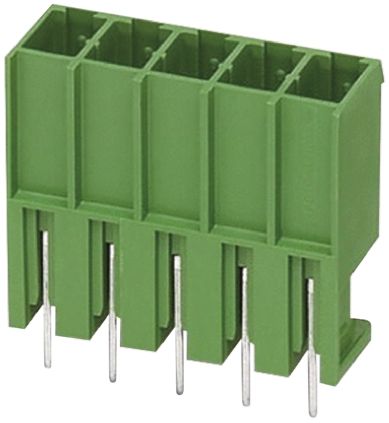

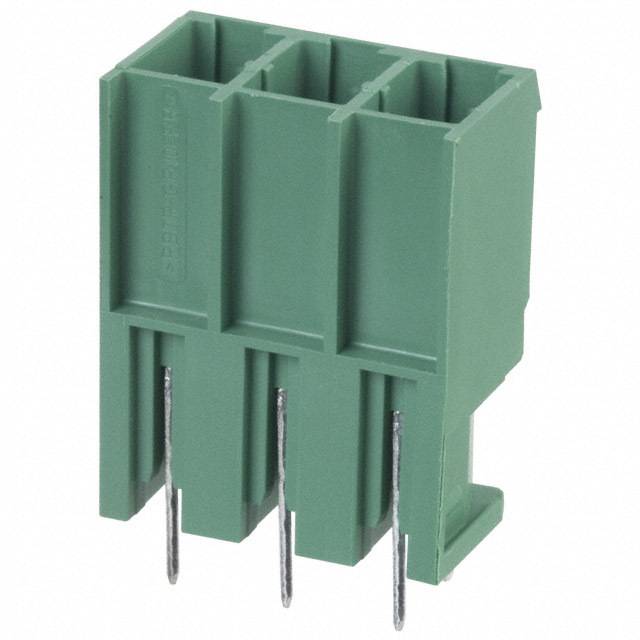

Phoenix Contact COMBICON PC 和 PCV 4 7.62mm 印刷电路板端子块管座7.62mm 节距 COMBICON PC 和 PCV 4 系列印刷电路板通孔安装端子块有罩管座，适合与 COMBICON PC 4 插头一起使用。 库存号 493-2686 和 803-2777 为水平印刷电路板安装（PC 系列），其他为垂直印刷电路板安装（PCV 系列）### Phoenix Contact COMBICON 7.62mm 两件式端子块### 认可UL94V-0

Contact COMBICON PC 和 PCV 4 7.62mm 印刷电路板端子块管座

7.62mm 节距 COMBICON PC 和 PCV 4 系列印刷电路板通孔安装端子块有罩管座，适合与 COMBICON PC 4 插头一起使用。

库存号 493-2686 和 803-2777 为水平印刷电路板安装（PC 系列），其他为垂直印刷电路板安装（PCV 系列）

### Phoenix Contact COMBICON 7.62mm 两件式端子块

### 认可

UL94V-0

得捷:
TERM BLOCK HDR 3POS VERT 7.62MM

欧时:
Phoenix Contact PCB 接线端子块 COMBICON PCV 系列 3路 7.62mm节距 1排 直向 1804690, 焊接端接, 20A

贸泽:
固定接线端子 3P 7.62mm 180 DEG

艾睿:
Easily mount this wire to board 1804690 header connector from Phoenix Contact onto your PCB project to support a variety of physical configuration options. This HDR connector has 3 contacts that are plated with tin. It has a header type gender. It has a maximum voltage rating of 630 V. This is a 1-row connector. Its pitch is 7.62 mm. It has a straight body orientation. This device has a maximum current rating of 20 A. 1804690 is housed in green polyamide. It uses the solder termination method. This product is 22.84 mm long, 29 mm tall and 14.3 mm deep.

Allied Electronics:
Conn; TermBlk; PCB; Header; SnglLvl; Sldr; 3Pole; 7.62mmPitch; COMBICON

Verical:
Conn Wire to Board HDR 3 POS 7.62mm Solder ST Thru-Hole

MASTER:
PCB headers - nominal current: 20 A - rated voltage III/2: 630 V - nominal cross section: 4 mm² - number of positions: 3 - pitch: 7.62 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 5 m

Online Components:
Conn Wire to Board HDR 3 POS 7.62mm Solder ST Thru-Hole

Electro Sonic:
PCB headers - nominal current: 20 A - rated voltage III/2: 630 V - nominal cross section: 4 mm² - ...
