1863181

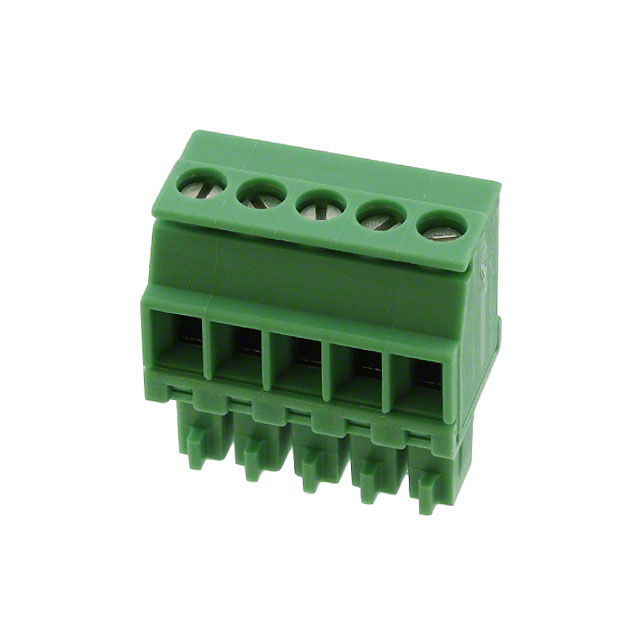

可插拔接线端子 5 Pos 3.5mm pitch Plug 28-16 AWG Screw

**Features:**

* Polyamide Insulating Material

* Voltage: 300, Amps: 8, AWG: 30-14

* Plug-In Direction Vertical to the Conductor Axis

* Can Be Placed Close to Neighboring Walls and Removed from Above without Compressing the Connected Lines

* Connection Point Facing the Coding-Side of the Header

得捷:
TERM BLOCK PLUG 5POS 90DEG 3.5MM

贸泽:
可插拔接线端子 5 Pos 3.5mm pitch Plug 28-16 AWG Screw

艾睿:
Say goodbye to wires becoming undone by using this 1863181 PCB terminal block developed by Phoenix Contact. This F connector has 5 contacts that are plated with tin. This is a 1-row connector. Its pitch is 3.5 mm. It has a straight body orientation. It has a female type gender. It has a maximum voltage rating of 160 V@IEC|300V@UL. 1863181 is housed in polyamide. This device has a maximum current rating of 8 A. Its wire is 16-28@IEC|14-30@UL AWG. It uses the screw termination method. This product is 18.3 mm long, 19.1 mm tall and 10.4 mm deep.

Allied Electronics:
Conn; Term Blk; Plug; Screw; 5, 3.5 mm; 30-14 AWG; 8 A; 300 V; PA; M2

Verical:
Conn Terminal Block F 5 POS 3.5mm Screw ST Cable Mount 8A

MASTER:
PCB connector - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - number of positions: 5 - pitch: 3.5 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin

Online Components:
Conn Terminal Block F 5 POS 3.5mm Screw ST Cable Mount 8A

Electro Sonic:
PCB connector - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
