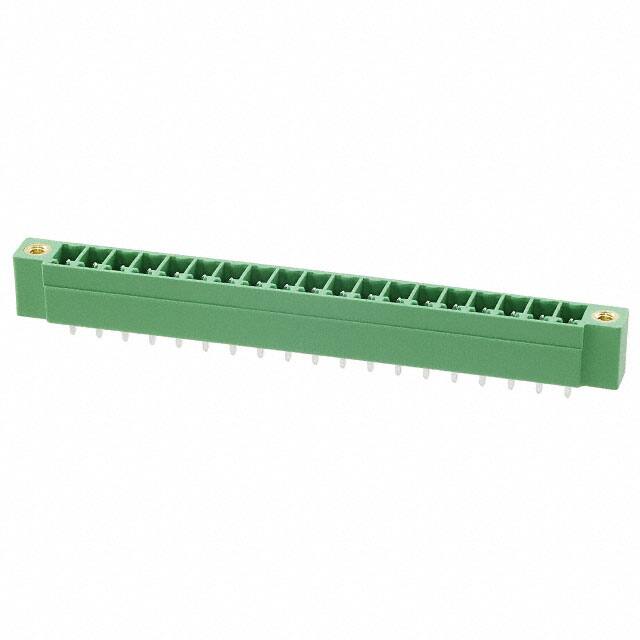

Phoenix Contact PCB 接线端子块 COMBICON MCV 系列 19路 3.81mm节距 1844951, 焊接端接, 8A
Conn Wire to Board HDR 19 POS 3.81mm Solder ST Thru-Hole
得捷:
TERM BLOCK HDR 19POS VERT 3.81MM
欧时:
Phoenix Contact PCB 接线端子块 COMBICON MCV 系列 19路 3.81mm节距 1844951, 焊接端接, 8A
艾睿:
Think of Phoenix Contact&s;s wire to board 1844951 header connector the next time you&s;re concerned about accidentally shorting out pins on your printed circuit. This HDR connector has 19 contacts that are plated with tin. It has a maximum voltage rating of 160 V. It has a straight body orientation. Its pitch is 3.81 mm. It has a header type gender. This is a 1-row connector. This device has a maximum current rating of 8 A. It uses the solder termination method. This product is 82.78 mm long, 9.2 mm tall and 7.25 mm deep. 1844951 is housed in green polybutylene terephthalate.
Verical:
Conn Wire to Board HDR 19 POS 3.81mm Solder ST Thru-Hole
Online Components:
Conn Wire to Board HDR 19 POS 3.81mm Solder ST Thru-Hole
Electro Sonic:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
