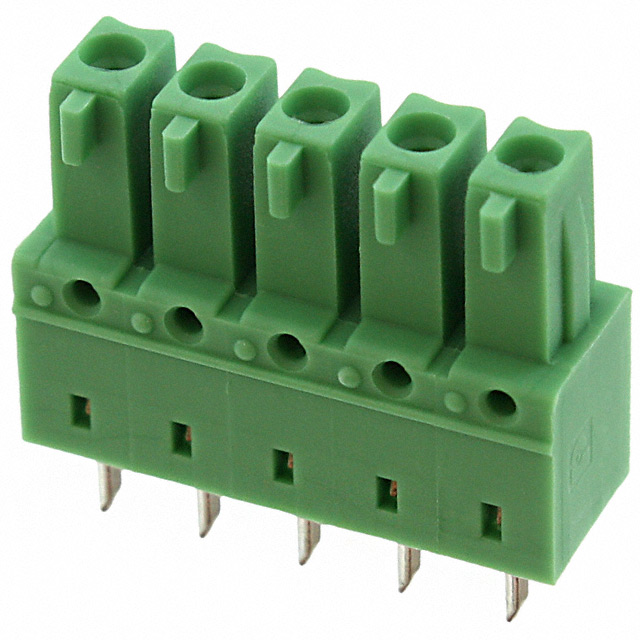

Phoenix Contact PCB 接线端子块 COMBICON IMCV 系列 5路 3.81mm节距 1875454, 焊接端接, 8A
Conn Wire to Board HDR 5 POS 3.81mm Solder ST Thru-Hole
得捷:
TERM BLOCK HDR 5POS VERT 3.81MM
欧时:
Phoenix Contact PCB 接线端子块 COMBICON IMCV 系列 5路 3.81mm节距 1875454, 焊接端接, 8A
艾睿:
Reduce the possibility of accidentally shorting pins when using a printed circuit board with this wire to board 1875454 header connector from Phoenix Contact. This HDR connector has 5 contacts that are plated with tin. It has a maximum voltage rating of 160 V. This is a 1-row connector. It has a straight body orientation. It has a header type gender. Its pitch is 3.81 mm. This device has a maximum current rating of 8 A. 1875454 is housed in green polyamide. It uses the solder termination method. This product is 19.84 mm long, 14.5 mm tall and 7.8 mm deep.
Verical:
Conn Wire to Board HDR 5 POS 3.81mm Solder ST Thru-Hole
MASTER:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - number of positions: 5 - pitch: 3.81 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.
Online Components:
Conn Wire to Board HDR 5 POS 3.81mm Solder ST Thru-Hole
Electro Sonic:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
