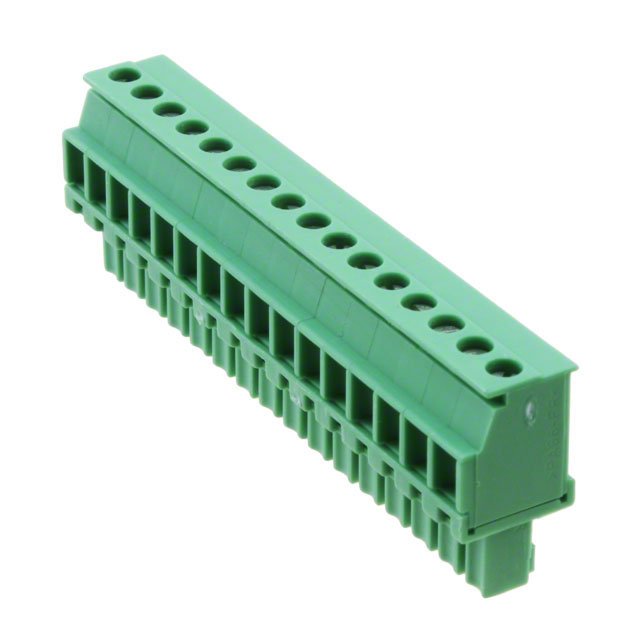

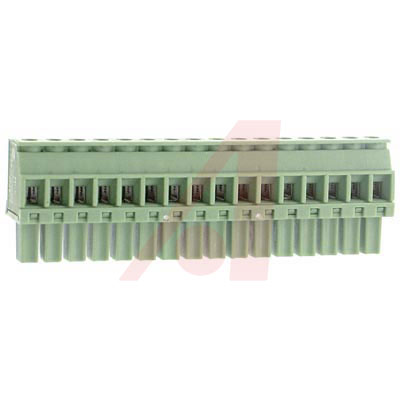

1827114

间距3.81 16位 公头 8A 160V 螺钉式 配线28-16AWG0.14-1.5mm²

**Features:**

* Polyamide Insulating Material

* Voltage: 300, Amps: 8, AWG: 30-14

* Plug-In Direction Vertical to the Conductor Axis

* Can Be Placed Close to Neighboring Walls and Removed from Above without Compressing the Connected Lines

* Connection Point Facing the Ripped Side of the Header

得捷:
TERM BLOCK PLUG 16POS 3.81MM

贸泽:
Pluggable Terminal Blocks 16 Pos 3.81mm pitch Plug 28-16 AWG Screw

艾睿:
Connect test equipment together with other components by using this 1827114 PCB terminal block from Phoenix Contact. This F connector has 16 contacts that are plated with tin. Its pitch is 3.81 mm. It has a straight body orientation. It has a female type gender. This is a 1-row connector. It has a maximum voltage rating of 160 V. This device has a maximum current rating of 8 A. 1827114 is housed in polyamide. Its wire is 16-28 AWG. This product is 61.75 mm long, 19.1 mm tall and 10.4 mm deep. It uses the screw termination method.

Allied Electronics:
Conn; Term Blk; Plug; Screw; 16; 3.81 mm; 30-14 AWG; 8 A; 300 V; PA; M2

Verical:
Conn Terminal Block F 16 POS 3.81mm Screw ST Cable Mount 8A

MASTER:
PCB connector - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - number of positions: 16 - pitch: 3.81 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin

Online Components:
Conn Terminal Block F 16 POS 3.81mm Screw ST Cable Mount 8A

Electro Sonic:
PCB connector - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
