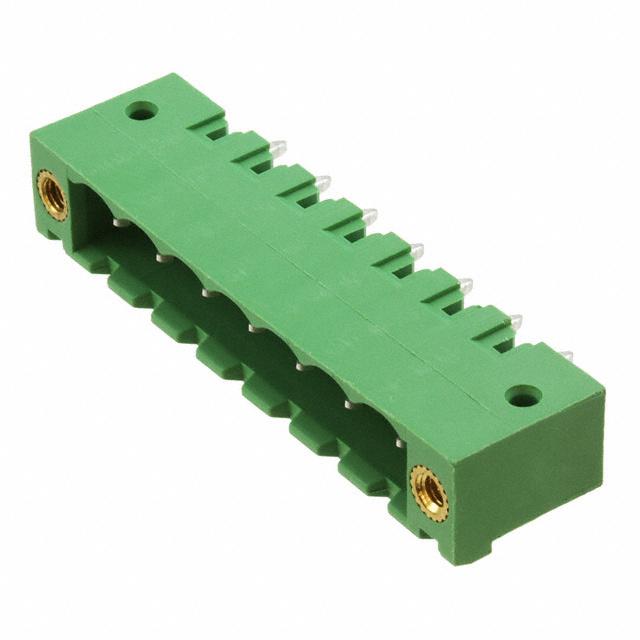

Phoenix Contact PCB 接线端子块 COMBICON MSTBV 系列 7路 5.08mm节距 1777125, 焊接端接, 12A
Conn Shrouded Header HDR 7 POS 5.08mm Solder ST Thru-Hole
得捷:
TERM BLOCK HDR 7POS VERT 5.08MM
艾睿:
Make strong and binding connections on your circuit boards by adopting this shrouded 1777125 connector from Phoenix Contact. This HDR connector has 7 contacts that are plated with tin. It has a header type gender. It has a straight body orientation. It has a maximum voltage rating of 320 V. Its pitch is 5.08 mm. This is a 1-row connector. This device has a maximum current rating of 12 A. 1777125 is housed in green polybutylene terephthalate. It uses the solder termination method. This product is 45.72 mm long, 12 mm tall and 8.3 mm deep.
MASTER:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 7 - pitch: 5.08 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3
Online Components:
Conn Shrouded Header HDR 7 POS 5.08mm Solder ST Thru-Hole
Electro Sonic:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
