1777895

Connector; PCB; 12A; 320V; 12POS; Screw Conn; Green; FRONT-MSTB 2, 5/12-STF-5, 08

Conn Terminal Block F 12 POS 5.08mm Screw ST Panel Mount 12A

得捷:
TERM BLOCK PLUG 12POS STR 5.08MM

艾睿:

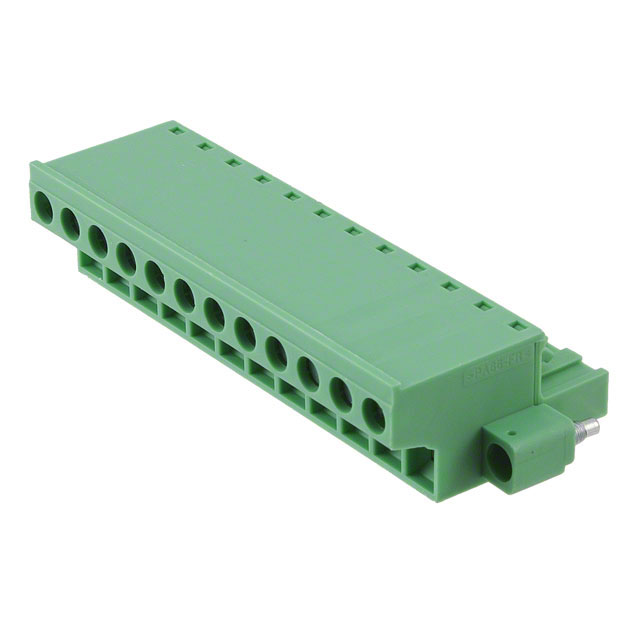

This 1777895 PCB terminal block from Phoenix Contact will join multiple circuits by connecting to the bare wire. This F connector has 12 contacts that are plated with tin. This is a 1-row connector. It has a maximum voltage rating of 320 V. It has a straight body orientation. It has a female type gender. Its pitch is 5.08 mm. 1777895 is housed in polyamide. This device has a maximum current rating of 12 A. Its wire is 12-24 AWG. This product is 70.76 mm long, 15 mm tall and 27.5 mm deep. It uses the screw termination method.

Allied Electronics:
Connector; PCB; 12A; 320V; 12 Pos; Screw Conn; Green; FRONT-MSTB 2, 5/12-STF-5, 08

Verical:
Conn Terminal Block F 12 POS 5.08mm Screw ST Panel Mount 12A

MASTER:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 12 - pitch: 5.08 mm - connection method: Front screw connection - color: green - contact surface: Tin

Online Components:
Conn Terminal Block F 12 POS 5.08mm Screw ST Panel Mount 12A

Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
