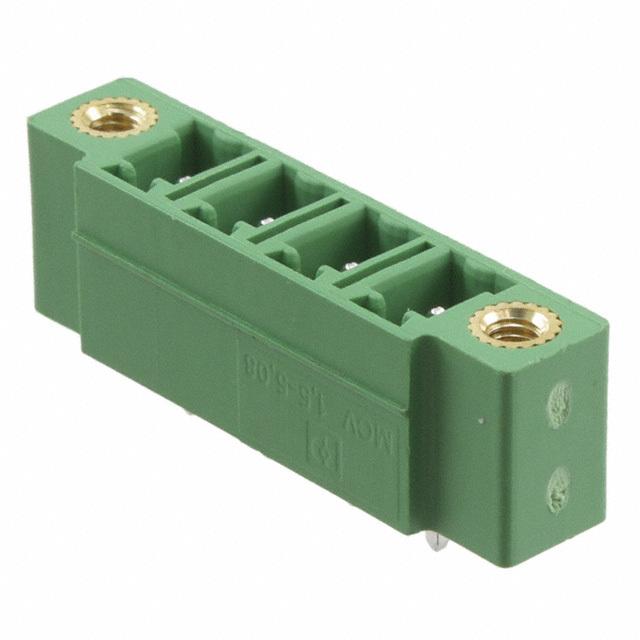

Phoenix Contact PCB 接线端子块 COMBICON MCV 系列 4路 5.08mm节距 1847631, 焊接端接, 8A
Conn Wire to Board HDR 4 POS 5.08mm Solder ST Thru-Hole
得捷:
TERM BLOCK HDR 4POS VERT 5.08MM
欧时:
Phoenix Contact PCB 接线端子块 COMBICON MCV 系列 4路 5.08mm节距 1847631, 焊接端接, 8A
艾睿:
Mounting this wire to board 1847631 header connector from Phoenix Contact to your printed circuit board can help you support multiple physical configuration options. This HDR connector has 4 contacts that are plated with tin. Its pitch is 5.08 mm. It has a maximum voltage rating of 320 V. It has a straight body orientation. This is a 1-row connector. It has a header type gender. This device has a maximum current rating of 8 A. This product is 29.44 mm long, 9.2 mm tall and 7.25 mm deep. It uses the solder termination method. 1847631 is housed in green polybutylene terephthalate.
Verical:
Conn Wire to Board HDR 4 POS 5.08mm Solder ST Thru-Hole
MASTER:
PCB headers - nominal current: 8 A - rated voltage III/2: 320 V - nominal cross section: 1.5 mm² - number of positions: 4 - pitch: 5.08 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.
Online Components:
Conn Wire to Board HDR 4 POS 5.08mm Solder ST Thru-Hole
Electro Sonic:
PCB headers - nominal current: 8 A - rated voltage III/2: 320 V - nominal cross section: 1.5 mm² - ...
