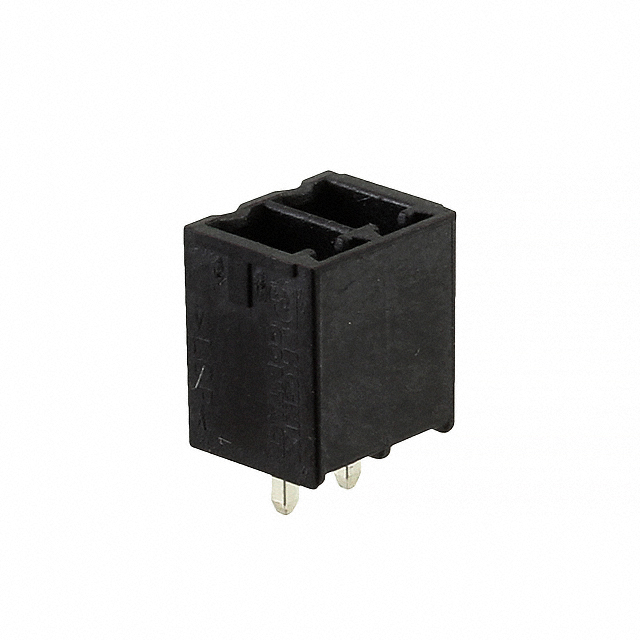

Phoenix Contact PCB 接线端子块 COMBICON MCV 系列 2路 3.5mm节距 1779365, 焊接端接, 8A
2 针位端子块 接头，公引脚，带罩（4 面） 0.138"（3.50mm） 垂直 - 通孔
得捷:
TERM BLOCK HDR 2POS VERT 3.5MM
欧时:
Phoenix Contact PCB 接线端子块 COMBICON MCV 系列 2路 3.5mm节距 1779365, 焊接端接, 8A
贸泽:
可插拔接线端子 2 Pos 3.5mm pitch Through Hole Header
艾睿:
This wire to board 1779365 header connector from Phoenix Contact is used for jumper posts to support physical configuration options on printed circuit boards. This M connector has 2 contacts that are plated with tin. It has a male type gender. Its pitch is 3.5 mm. This is a 1-row connector. It has a maximum voltage rating of 160 V. It has a straight body orientation. This device has a maximum current rating of 8 A. It uses the solder termination method. This product is 8.4 mm long, 9.2 mm tall and 7.25 mm deep.
Allied Electronics:
Header; 8A; 160 V; Pos: 2; black
Verical:
Conn Wire to Board M 2 POS 3.5mm Solder ST Thru-Hole
MASTER:
Conn Wire to Board M 2 POS 3.5mm Solder ST Thru-Hole
Online Components:
Conn Wire to Board M 2 POS 3.5mm Solder ST Thru-Hole
Electro Sonic:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
