1804807

Phoenix Contact COMBICON PC 和 PCV 4 7.62mm 印刷电路板端子块管座7.62mm 节距 COMBICON PC 和 PCV 4 系列印刷电路板通孔安装端子块有罩管座，适合与 COMBICON PC 4 插头一起使用。 库存号 493-2686 和 803-2777 为水平印刷电路板安装（PC 系列），其他为垂直印刷电路板安装（PCV 系列）### Phoenix Contact COMBICON 7.62mm 两件式端子块### 认可UL94V-0

Contact COMBICON PC 和 PCV 4 7.62mm 印刷电路板端子块管座

7.62mm 节距 COMBICON PC 和 PCV 4 系列印刷电路板通孔安装端子块有罩管座，适合与 COMBICON PC 4 插头一起使用。

库存号 493-2686 和 803-2777 为水平印刷电路板安装（PC 系列），其他为垂直印刷电路板安装（PCV 系列）

### Phoenix Contact COMBICON 7.62mm 两件式端子块

### 认可

UL94V-0

得捷:

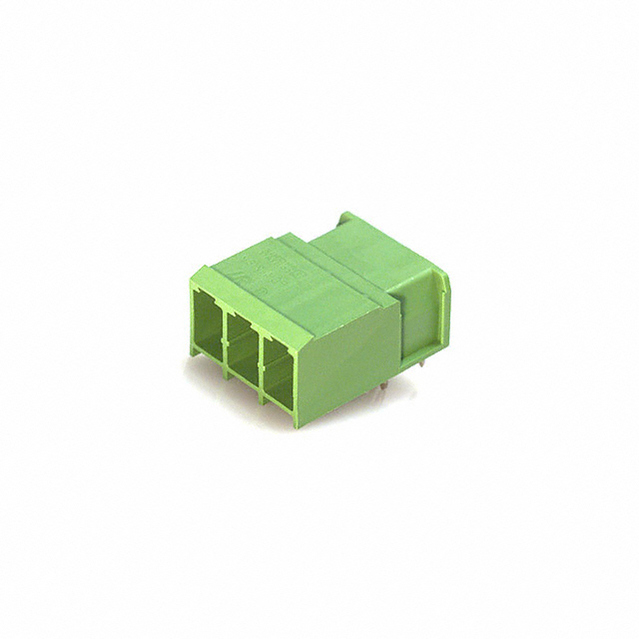

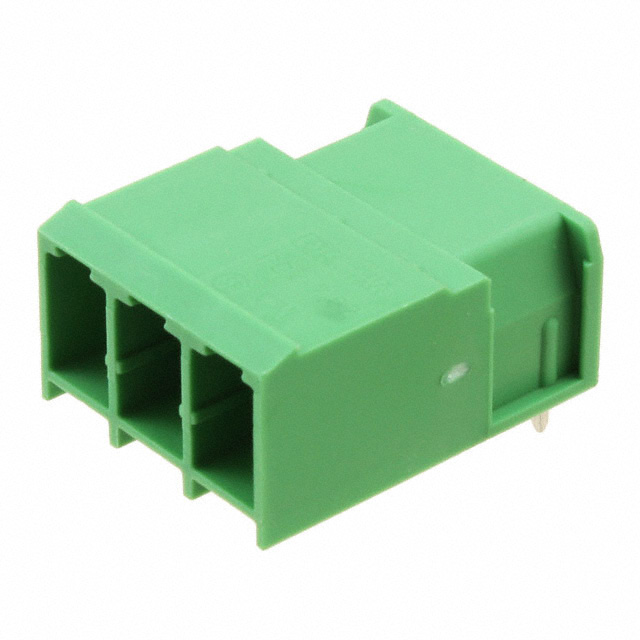

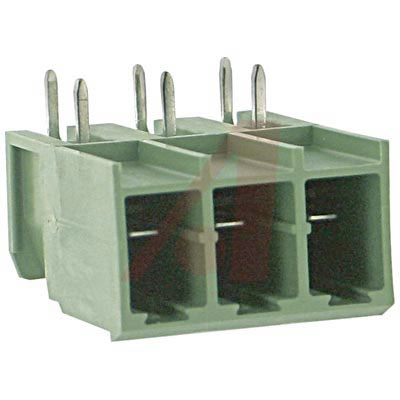

TERM BLOCK HDR 3POS 90DEG 7.62MM

欧时:

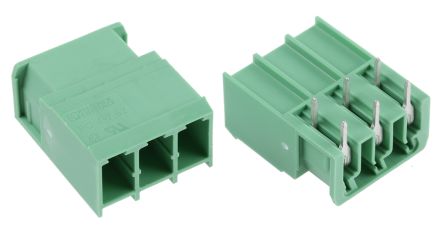

Phoenix Contact PCB 接线端子块 COMBICON PC 系列 3路 7.62mm节距 1排 直角 1804807, 焊接端接, 20A

艾睿:

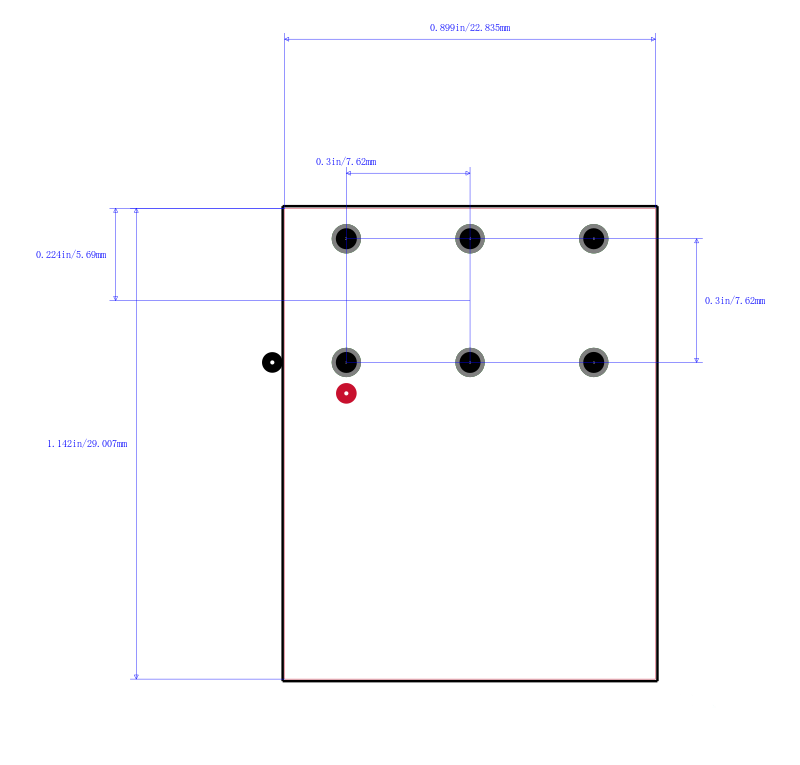

This shrouded 1804807 header connector from Phoenix Contact is used for jumper posts to support physical configuration options on printed circuit boards. This HDR connector has 3 contacts that are plated with tin. Its pitch is 7.62 mm. It has a right angle body orientation. It has a header type gender. It has a maximum voltage rating of 400 V. This is a 1-row connector. This device has a maximum current rating of 20 A. 1804807 is housed in polybutylene terephthalate. This product is 22.84 mm long, 14.3 mm tall and 29 mm deep. It uses the solder termination method.

Allied Electronics:
Conn; TermBlk; PCB; Header; SnglLvl; 90DegAngl; Sldr; 3Pole; 7.62mmPitch; COMBICON

Verical:
Conn Shrouded Header 4 Sides HDR 3 POS 7.62mm Solder RA Thru-Hole

MASTER:
PCB headers - nominal current: 20 A - rated voltage III/2: 630 V - nominal cross section: 4 mm² - number of positions: 3 - pitch: 7.62 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 5 m

Online Components:
Conn Shrouded Header HDR 3 POS 7.62mm Solder RA Thru-Hole

Electro Sonic:
PCB headers - nominal current: 20 A - rated voltage III/2: 630 V - nominal cross section: 4 mm² - ...
