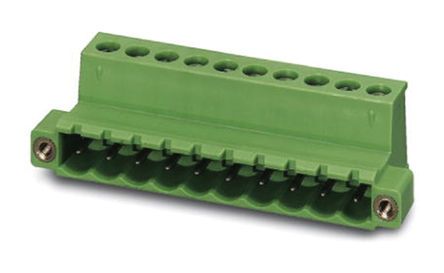

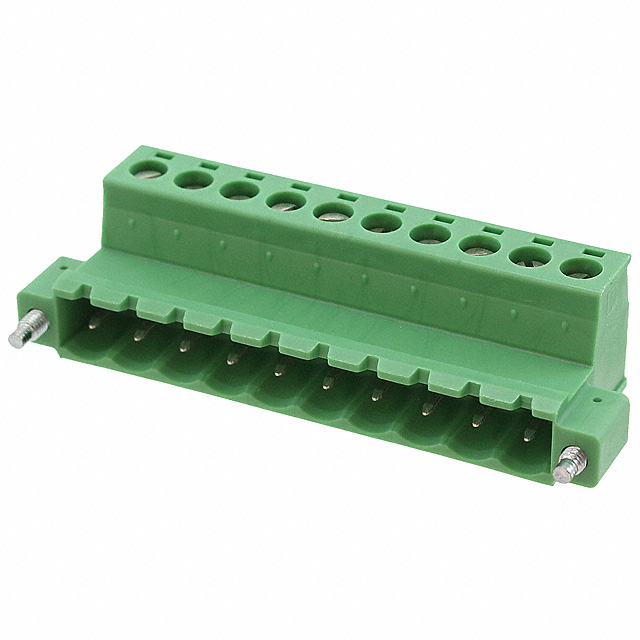

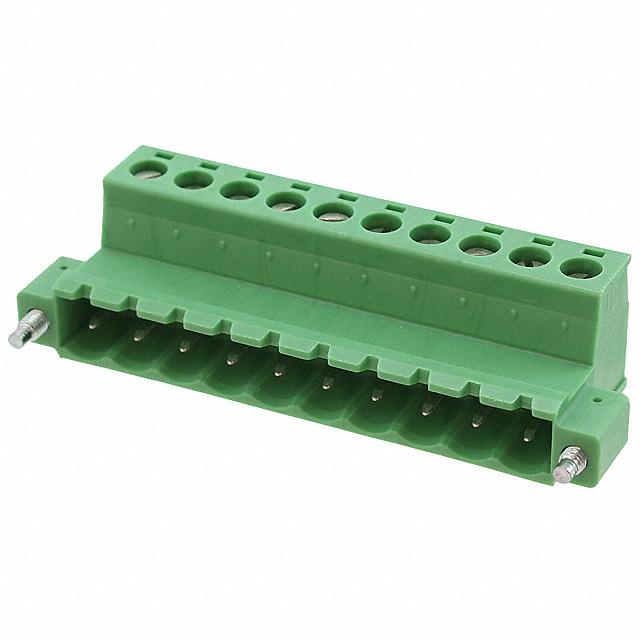

Phoenix Contact COMBICON IC 系列 5.08mm 节距 10 路 母 绿色 反相插头 1825394, 螺钉端接
Conn Terminal Block F 10 POS 5.08mm Screw RA Panel Mount 12A
得捷:
TERM BLOCK PLUG 10POS STR 5.08MM
欧时:
Phoenix Contact COMBICON IC 系列 5.08mm 节距 10 路 母 绿色 反相插头 1825394, 螺钉端接
贸泽:
可插拔接线端子 10 Pos 5.08mm Invert Plug 24-12AWG Screw
艾睿:
This 1825394 PCB terminal block from Phoenix Contact will join multiple circuits by connecting to the bare wire. This F connector has 10 contacts that are plated with tin. This is a 1-row connector. It has a maximum voltage rating of 320 V. It has a female type gender. It has a right angle body orientation. Its pitch is 5.08 mm. This device has a maximum current rating of 12 A. 1825394 is housed in polyamide. This product is 60.92 mm long, 15 mm tall and 19.2 mm deep. Its wire is 12-24 AWG. It uses the screw termination method.
Verical:
Conn Terminal Block M 10 POS 5.08mm Screw RA Panel Mount 12A Cardboard
Online Components:
Conn Terminal Block F 10 POS 5.08mm Screw RA Panel Mount 12A
Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
