1-796640-2

12 位置 5 mm 间距 30-12 AWG 欧式接线端子

12 POS 5.0 MM R/A PLUG,TRM BLK

Product Highlights

Connector

Connector Type = Plug

Not Shrouded

Housing Color = Green

Side Stackable

得捷:
TERM BLOCK PLUG 12POS STR 5MM

立创商城:
1-796640-2

贸泽:
可插拔接线端子 5.0MM RA PLUG 12P

艾睿:

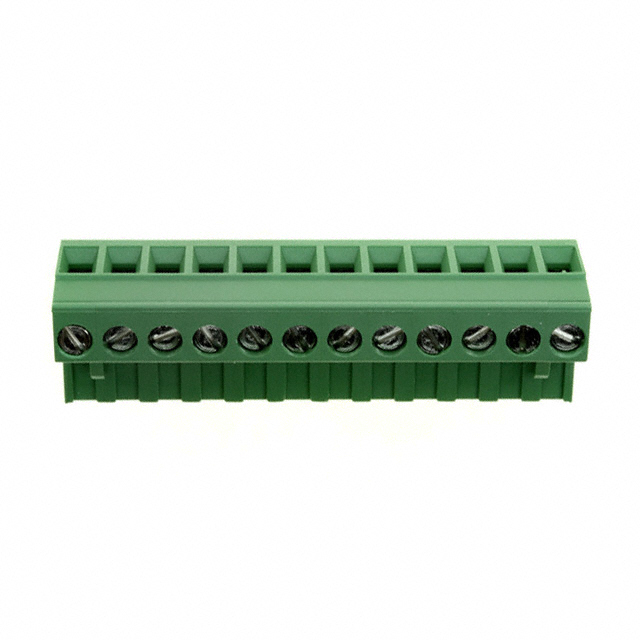

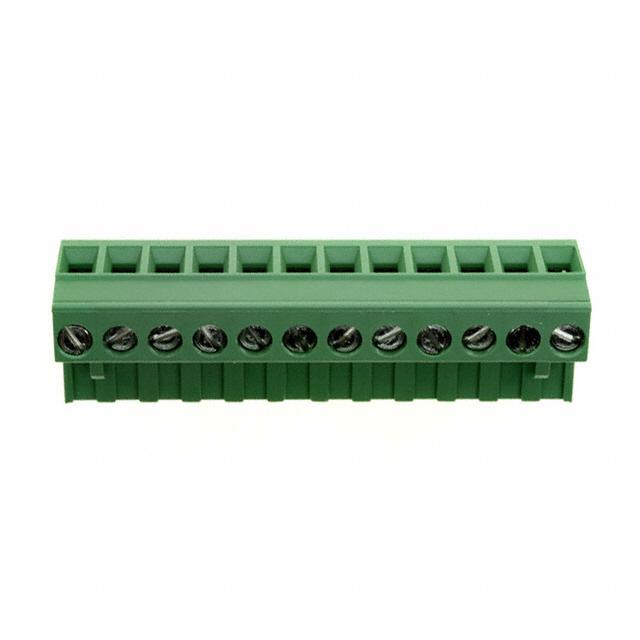

Know that you will have strong connections between circuits when you use TE Connectivity&s;s eurostyle block 1-796640-2 PCB terminal block. This F connector&s;s 12 contacts that are made out of phosphor bronze and plated with tin. It has a right angle body orientation. It has a female type gender. Its pitch is 5 mm. This is a 1-row connector. It has a maximum voltage rating of 300 VAC. This device has a maximum current rating of 15 A/contact. 1-796640-2 is housed in polyamide 6/6. This product is 60 mm long, 15.5 mm tall and 18.4 mm deep. It uses the screw termination method. Its wire is 12-30 AWG. This quick disconnect terminal has an operating temperature of -40 to 105 °C.

安富利:
Conn Terminal Block F 12 POS 5mm Screw RA Cable Mount 15A/Contact

Chip1Stop:
Conn Terminal Block F 12 POS 5mm Screw RA Cable Mount 15A/Contact

Verical:
Conn Eurostyle Block F 12 POS 5mm Screw RA Cable Mount 15A/Contact Box

MASTER:
TERMINAL BLOCK, PLUG, STACKING 5.00mm PITCH

Powell:
Terminal Block Connectors

Online Components:
12 POS 5.0 MM R/A PLUG,TRM BLK

Electro Sonic:
12 POS 5.0 MM R/A PLUG,TRM BLK
