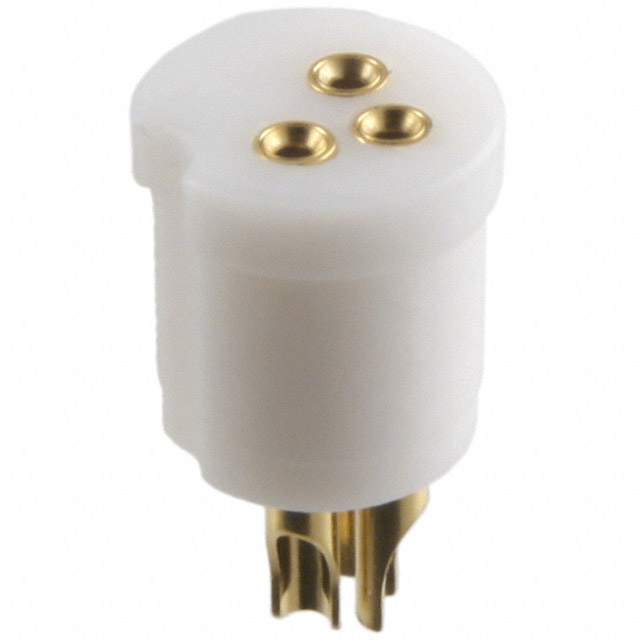

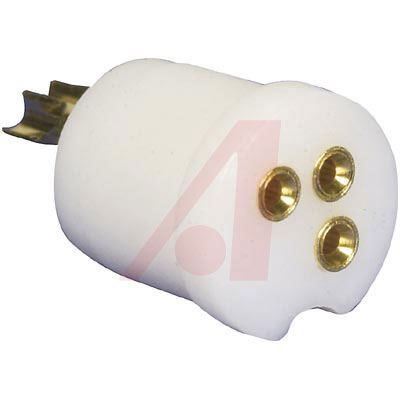

1-1437504-9

8060 系列 3 接触端子 焊料槽 晶体管 插座

3 Number of Pins, 0.016 in. Lead Size Accepted Diameter, Brass Sleeve, Socket

These transistor sockets utilize hi-rel machined outer sleeves and gold-plated inner contacts assembled into a low profile insulator. The funnel entry design eliminates distortion or damage to the contact with misalignment or oversized leads. The sockets accept 0.016" to 0.020" dia. pins. All have a 3 A current rating. This series features a large tapered entry for easy lead insertion and a closed bottom sleeve providing 100% prevention of solder or flux wicking.

* Polarization: Dot, Notch, Bump

* Contact Plating: 30 μ" Gold Per Mil-G-45204
