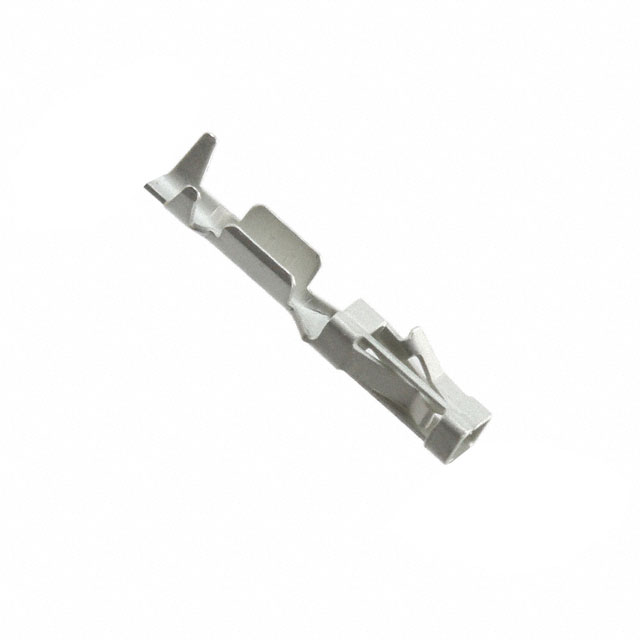

104480-2

CONN SOCKET 26-22AWG TIN CRIMP

SHORT POINT CONT PLTD SN-PB

Product Highlights

Receptacle Contact

Wire Termination Type = Crimp

Terminate To Wire

Wire Insulation Diameter = .64 - 1.52 mm

Wire Range = 0.12-0.40² [26-22] mm [AWG]

立创商城:
104480-2

得捷:
CONN SOCKET 22-26AWG CRIMP TIN

艾睿:
This 104480-2 connector contact from TE Connectivity will produce a strong wired connection. It has a socket type gender. It has a straight body orientation. This device has a maximum current rating of 3 A. This has a Connector Headers and PCB Receptacles connector. This product comes in strip packaging to create faster automation between picking parts and placing them on circuit boards. This product is 11.68 mm long and 2.67 mm. It uses the crimp termination method. This connector contact has an operating temperature range of -65 °C to 105 °C. Its wire is 22-26 AWG.

安富利:
Contact SKT Crimp ST Cable Mount Strip

Verical:
Contact SKT Crimp ST Cable Mount Automotive Strip

MASTER:
CONTACT, CRIMP SNAP-IN AMPMODU SHORT POINT, 22-26 AWG

Powell:
.100 AMPMODU Headers, Housings & Contacts

Online Components:
SHORT POINT CONT PLTD SN-PB

Electro Sonic:
SHORT POINT CONT PLTD SN-PB
