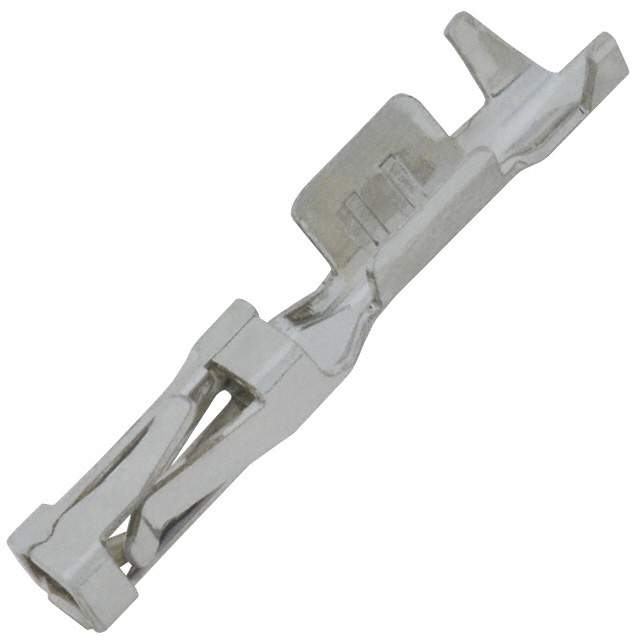

集管和线壳 RECEPTACLE 24-20 TIN
Never worry about a poor connection with this connector contact from . It has a straight body orientation. It has a socket type gender. This device has a maximum current rating of 3 A. This has a Connector Headers and PCB Receptacles connector. This connector contact has a minimum operating temperature of -65 °C and a maximum of 105 °C. Its wire is 20-24 AWG. It uses the crimp termination method. This product is 11.68 mm long and 2.66 mm.
触点数 1
极性 Female
线规 20AWG ~ 24AWG
触点电镀 Tin Lead
额定电压AC 300 V
额定电流 3.00 A
绝缘电阻 5.00 GΩ
触点额定电流 3.00 A
额定电流Max 3 A
工作温度Max 105 ℃
工作温度Min -65 ℃
额定电压Max 300 VAC
接触电阻Max 12 mΩ
触点材质 Copper Alloy
工作温度 -65℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8538908040
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
104479-5 TE Connectivity 泰科 | 当前型号 | 当前型号 |
104479-2 泰科 | 完全替代 | 104479-5和104479-2的区别 |
1-104479-1 泰科 | 功能相似 | 104479-5和1-104479-1的区别 |
