AMPHENOL FCI 10114827-001LF 触芯, 母, 压接, 28 AWG, 镀锡触芯, 10114826 Series Housing Connectors

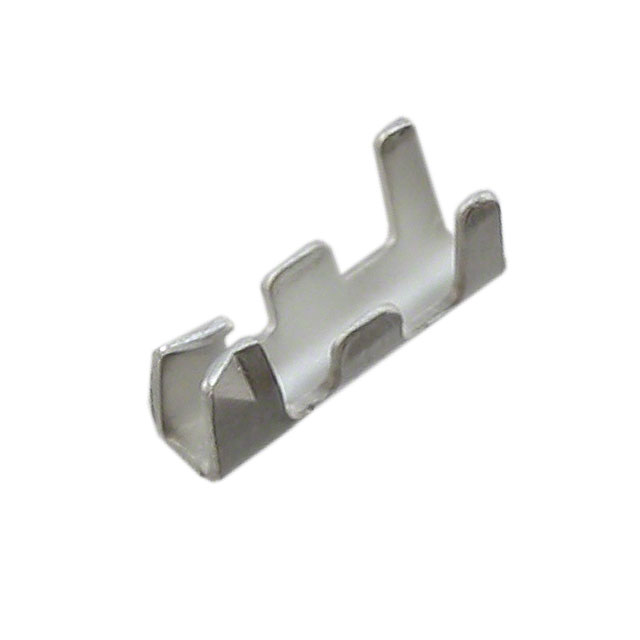

The is a Socket Crimp Contact made of phosphor bronze with tin-plated finish. It accepts 28 to 32AWG wire and can be used with 10114826 series housing connectors.
e络盟:
AMPHENOL FCI 10114827-001LF 金属触芯, 32-28AWG, 压接, 整卷
艾睿:
Contact SKT Crimp ST Cable Mount T/R
安富利:
Contact SKT Crimp ST Cable Mount Reel
Chip1Stop:
Contact SKT Crimp ST Cable Mount T/R
Verical:
Contact SKT Crimp ST Cable Mount 28-32AWG T/R
极性 Female
线规 28AWG ~ 32AWG
触点电镀 Tin
额定电流 1.00 A
接触电阻 20 mΩ
额定电流Max 1 A
工作温度Max 105 ℃
工作温度Min -40 ℃
接触电阻Max 20 mΩ
长度 3.3 mm
宽度 1.3 mm
触点材质 Phosphor Bronze
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
