IDC 端接方式 至导线/电缆 2.54 mm 中心线

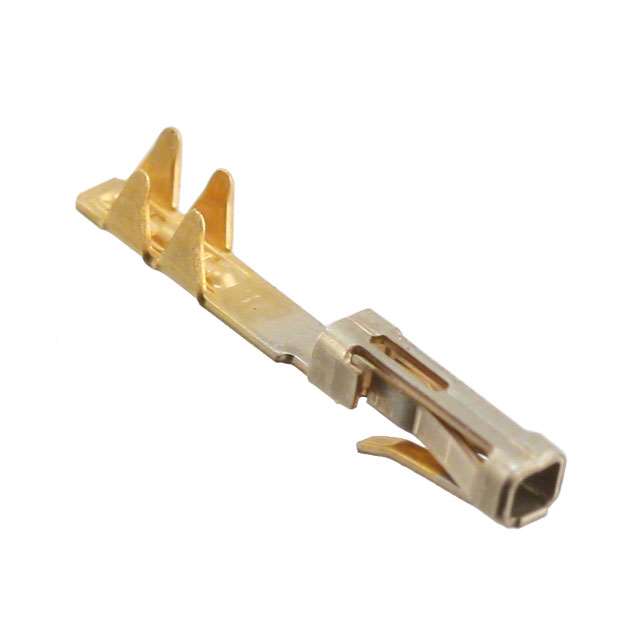

RCPT CONTACT,HIGH PRESS,FFC
Product Highlights
Socket
Contact Type = Receptacle, high pressure
2.54 mm Centerline
Wire/Cable Type = Flexible Flat Conductor Cable
Gold 15 Contact Mating Area Plating Material
得捷:
CONTACT FLAT FLEX SOCKET GOLD
艾睿:
Prevent premature failure by installing this 1-487117-0 connector contact from TE Connectivity. It has a straight body orientation. It has a socket type gender. This has a Connector FFC-FPC connector. This product comes in strip packaging to create faster automation between picking parts and placing them on circuit boards. This product is 12.01 mm long, 1.82 mm tall and 1.87 mm deep. It uses the idt termination method. This connector contact has a minimum operating temperature of -40 °C and a maximum of 120 °C.
安富利:
Contact SKT Crimp ST Cable Mount Strip
Chip1Stop:
Contact SKT Crimp ST Cable Mount Strip
Verical:
Contact SKT IDT ST Cable Mount Strip
MASTER:
RECEPTACLE CONTACT, HIGH PRESSURE
Powell:
Flexible Film Contacts
Online Components:
RCPT CONTACT,HIGH PRESS,FFC
GOPHER:
Receptacle Contact FFC .100IN PITCH FFC MOUNT GOLD 14K REEL
Electro Sonic:
RCPT CONTACT,HIGH PRESS,FFC
触点数 1
极性 Female
触点电镀 Gold, Gold Flash
接触电阻 3 mΩ
额定电流Max 2 A
工作温度Max 105 ℃
工作温度Min -65 ℃
接触电阻Max 3 mΩ
长度 12.01 mm
宽度 1.87 mm
高度 1.82 mm
触点材质 Phosphor Bronze
工作温度 -40℃ ~ 120℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Signal
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8538908040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1-487117-0 TE Connectivity 泰科 | 当前型号 | 当前型号 |
487117-4 泰科 | 功能相似 | 1-487117-0和487117-4的区别 |
