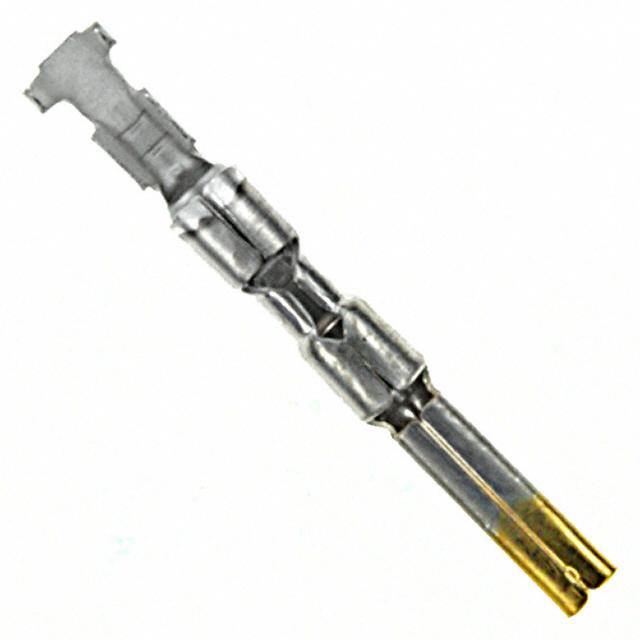

Pin & Socket Connectors SOCKET CON 26-22AWG Gold
MINI UMNL2 SOK 26-22 AWG LP LF
Product Highlights
Contact
Contact Type = Socket
Wire Barrel Contact Termination Type
Mini-Universal MATE-N-LOK 2
Terminate To Wire
得捷:
CONN SOCKET 22-26AWG CRIMP GOLD
贸泽:
Pin & Socket Connectors SOCKET CON 26-22AWG Gold
艾睿:
Never worry about a loose connection again with this 1-794227-0 connector contact from TE Connectivity. It has a socket type gender. It has a straight body orientation. This device has a maximum current rating of 10.5 A. This has a Connector Headers and PCB Receptacles connector. Its wire is 22-26 AWG. It uses the crimp termination method. This product is 20.2 mm long, 2.92 mm tall and 2.95 mm deep. This connector contact has a minimum operating temperature of -20 °C and a maximum of 105 °C.
安富利:
Contact SKT Crimp ST Cable Mount Loose Piece
Chip1Stop:
Contact SKT Crimp ST Cable Mount Bag
Verical:
Contact SKT Crimp ST Cable Mount 22-26AWG Bag
Newark:
# AMP - TE CONNECTIVITY 1-794227-0 Contact, Mini Universal MATE-N-LOK 2 Series, Socket, Crimp, 22 AWG, Gold Plated Contacts
MASTER:
SOCKET, LOOSE PIECE, MINI UNIVERSAL MATE-N-LOKTM 2
Powell:
.163" Centerline, 600 V, 9.5 A max.
Online Components:
MINI UMNL2 SOK 26-22 AWG LP LF
Electro Sonic:
MINI UMNL2 SOK 26-22 AWG LP LF
极性 Female
线规 22AWG ~ 26AWG
触点电镀 Gold
额定电流 10.5 A
易燃性等级 UL 94 V-0
接触电阻 20 mΩ
额定电流Max 10.5 A
工作温度Max 105 ℃
工作温度Min -20 ℃
额定电压 600 V
接触电阻Max 20 mΩ
长度 20.2 mm
宽度 2.95 mm
高度 2.92 mm
触点材质 Brass
工作温度 -20℃ ~ 105℃
产品生命周期 Active
包装方式 Bag
制造应用 Power
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536904000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1-794227-0 TE Connectivity 泰科 | 当前型号 | 当前型号 |
1-794219-0 泰科 | 功能相似 | 1-794227-0和1-794219-0的区别 |
794227-3 泰科 | 功能相似 | 1-794227-0和794227-3的区别 |
