TE Connectivity Power Double-Lock 系列TE Connectivity Power Double Lock 连接器设计紧凑,用于电源电路,并且十分适用于电冰箱、空调、洗衣机、气体设备、复印机和自动贩卖机中的布线。 这些连接器可以通过向外壳插入电线端接压接咬合触点,而单独使用。 但是为了实现正面安装,这些连接器安装有他们可以配备有双锁盖板,有助于防止/阻止触点的半途匹配。
触点
欧时:
### 触点### TE Connectivity Power Double-Lock 系列TE Connectivity Power Double Lock 连接器设计紧凑,用于电源电路,并且十分适用于电冰箱、空调、洗衣机、气体设备、复印机和自动贩卖机中的布线。 这些连接器可以通过向外壳插入电线端接压接咬合触点,而单独使用。 但是为了实现正面安装,这些连接器安装有他们可以配备有双锁盖板,有助于防止/阻止触点的半途匹配。
得捷:
CONN SOCKET 16-20AWG CRIMP TIN
立创商城:
177915-1,端子,20-16 AWG
e络盟:
触芯, Power Double Lock Series, 母, 压接, 16 AWG, 镀锡触芯, AMP Power Double Lock 系列连接器
艾睿:
Easily improve a secured connection with this specially engineered 177915-1 connector contact from TE Connectivity. It has a socket type gender. It has a straight body orientation. This device has a maximum current rating of 10 A. This has a Connector Power connector. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its wire is 16-20 AWG. It uses the crimp termination method. This product is 14.7 mm long, 3.6 mm tall and 4 mm deep. This connector contact has a minimum operating temperature of -30 °C and a maximum of 105 °C.
安富利:
Contact SKT Crimp ST Cable Mount Strip
Verical:
Contact SKT 12 Size Crimp ST Cable Mount 16-20AWG T/R
Newark:

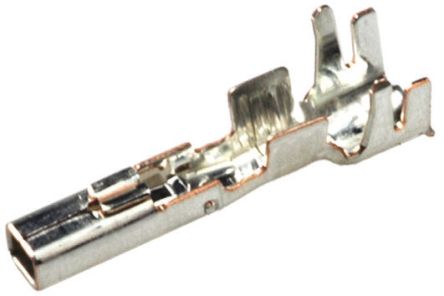

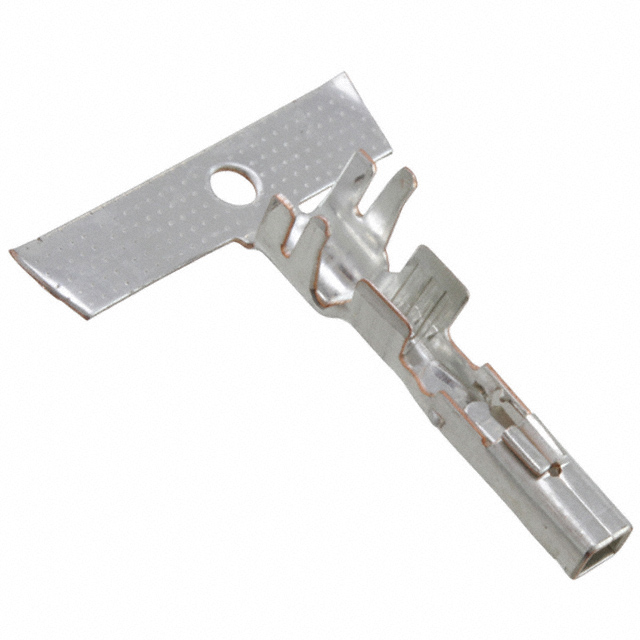

# AMP - TE CONNECTIVITY 177915-1 Rectangular Power Contact, Power Double Lock Series, Tin Plated Contacts, Copper Alloy, Socket
MASTER:
Rectangular Power Contact - Power Double Lock Series - Tin Plated Contacts - Copper Alloy - Socket.
Powell:
Power Double-Lock Connectors
Online Components:
AMP POWER DBL LOCK REC L
Electro Sonic:
Rectangular Power Contact - Power Double Lock Series - Tin Plated Contacts - Copper Alloy - Socket.
极性 Female
线规 16AWG ~ 20AWG
触点电镀 Tin
额定电流 14 A
易燃性等级 UL 94 V-0
额定电流Max 10 A
工作温度Max 105 ℃
工作温度Min -30 ℃
额定电压Max 300 VAC
额定电压 300 V
封装 端子
高度 3.6 mm
封装 端子
触点材质 Copper Alloy
工作温度 -30℃ ~ 105℃
外壳材质 Nylon
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Power
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8538908040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
177915-1 TE Connectivity 泰科 | 当前型号 | 当前型号 |
179593-1 泰科 | 功能相似 | 177915-1和179593-1的区别 |
