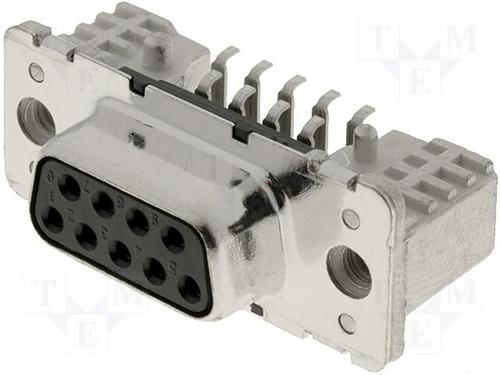

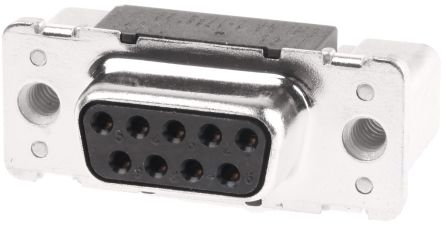

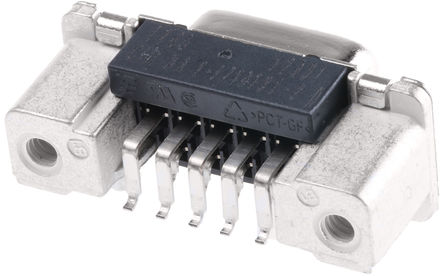

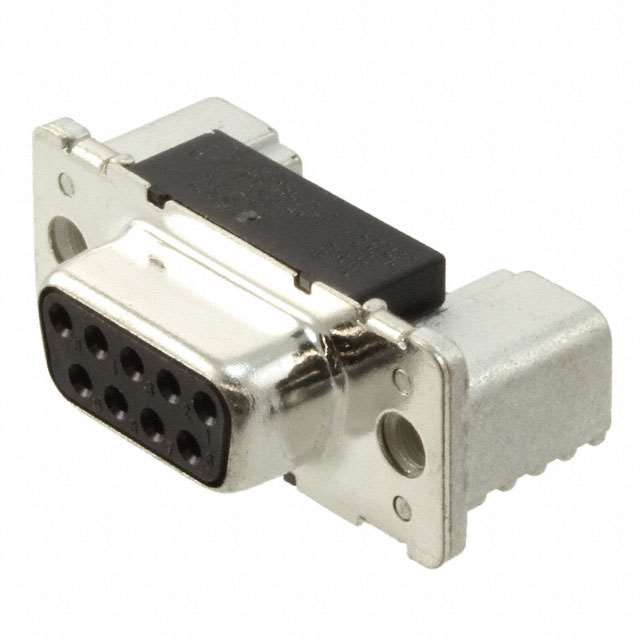

AMP FROM TE CONNECTIVITY 1-1740194-2 连接器, D sub, 堆叠式, Amplimite HD-20系列, DA, 插座, 9 触点, 金属主体, 焊接
表面安装印刷电路板 D-Sub
关键设计功能可确保高效且可靠的处理,可以进行表面安装,适合各种应用。提供 9 至 37 位置插头和插座变型。
受控制的重心位置,可确保处理期间牢固定位
具有完全拾放功能,无需费力简化装配
大型安装支架可提高接地和机械稳定性
0.80μm 镀金触点
得捷:
CONN D-SUB RCPT 9P SMD R/A SLDR
欧时:
### Surface Mount PCB D-SubKey design features ensure efficient and reliable processing, to enable surface mounting for a wide range of applications. Available in 9 to 37 position plug and socket variants.Controlled centre of gravity for secure positioning during processing Fully pick and place capable without force for simplification of assembly Large mounting bracket improves grounding and mechanical stability 0.80μm gold plated contacts ### Surface Mount PCB D-Sub
e络盟:
D-Sub 连接器, DB9, 标准, 插座, AMPLIMITE HD-20系列, 9 触点, DE, 焊接
艾睿:
Communicating with serial connections is made easy with this 1-1740194-2 DVI connector from TE Connectivity. This 2-row connector has a single port. It has a maximum voltage rating of 250 VAC. It has a right angle body orientation. Its pitch is 2.74 mm. This socket type connector&s;s 9 contacts that are made out of cumg and plated with gold over nickel. 1-1740194-2 is housed in polychlorinated terphenyl. This device has a maximum current rating of 4.5 A/contact. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This DVI connector has an operating temperature of -55 to 105 °C. This product is 30.8 mm long, 12.5 mm tall and 17.26 mm deep. Its 9 terminals use the solder termination method.
Allied Electronics:
9W SMT SKT + INSERTS
安富利:
Conn D-Subminiature RCP 9 POS 2.74mm Solder RA SMD 9 Terminal 1 Port T/R
Chip1Stop:
Conn D-Subminiature SKT 9 POS 2.74mm Solder RA SMD 9 Terminal 1 Port T/R
TME:
Socket; D-Sub; PIN:9; female; Locking: screws; horizontal; SMT; 4.5A
Verical:
Conn D-Subminiature SKT 9 POS 2.74mm Solder RA SMD 9 Terminal 1 Port T/R
Newark:
# AMP - TE CONNECTIVITY 1-1740194-2 Standard D Sub Connector, Amplimite HD-20, 9 Contacts, Receptacle, DA, AMPLIMITE HD-20 Series
MASTER:
HDP20 REC. HEADER, SMT, 9POS. HDP20 BUCHSENSTECKER, SMT, 9POL. EUROSTYLE
Powell:
Standard Board Mount Connectors
Online Components:
9P HD20 RECEP. HDR UNC4-40 EUROST. SMT
Electro Sonic:
9P HD20 RECEP. HDR UNC4-40 EUROST. SMT
触点数 9
极性 Female
触点电镀 Gold, Tin, Tin over Nickel
额定电流 4.5 A
电容 910000 PF
排数 2
方向 Right Angle
易燃性等级 UL 94 V-0
针脚数 9
额定电流Max 4.5A/触头
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压Max 250 VAC
额定电压 250 VAC
工作电压Max 250 VAC
安装方式 Surface Mount
引脚数 9
封装 Steel, Tin plated
长度 30.8 mm
宽度 12.5 mm
高度 12.5 mm
封装 Steel, Tin plated
外壳颜色 Black
颜色 Black
触点材质 Copper Alloy
材质 Steel
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Signal, 工业, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8536694040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1-1740194-2 TE Connectivity 泰科 | 当前型号 | 当前型号 |
09 55 156 6611741 哈丁电子 | 类似代替 | 1-1740194-2和09 55 156 6611741的区别 |
09551566622741 哈丁电子 | 功能相似 | 1-1740194-2和09551566622741的区别 |
09 55 156 6613741 哈丁电子 | 功能相似 | 1-1740194-2和09 55 156 6613741的区别 |
