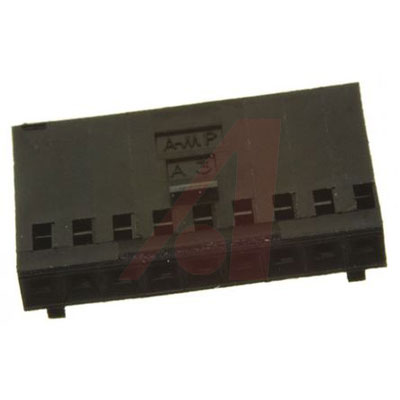

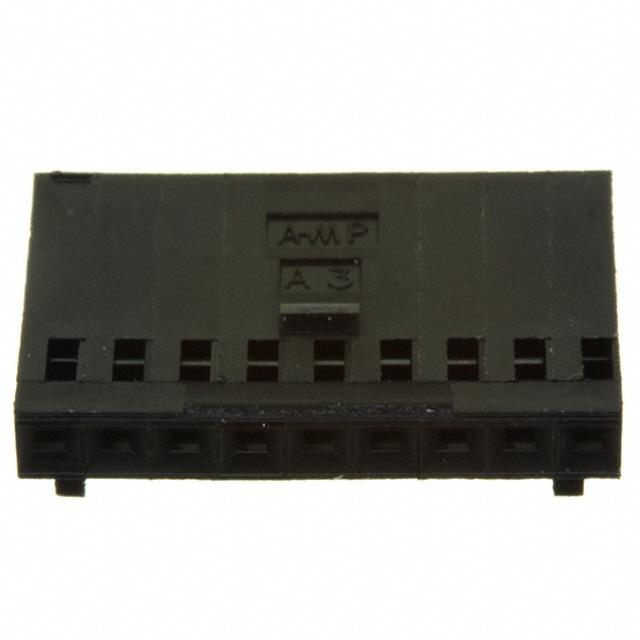

102241-7

AMP FROM TE CONNECTIVITY  102241-7.  线至板连接器, 母, 9路, 2.54MM

09 MODIV HSG COMP SR .100 POL

Product Highlights

Receptacle Housing

Wire Termination Type = Crimp

Number of Positions = 9

Housing Type = Receptacle

Number of Rows = Single

得捷:
CONN RCPT HSG 9POS 2.54MM

立创商城:
塑壳

e络盟:
线至板连接器, 2.54 mm, 9 触点, 插座, AMPMODU MOD IV系列, 1 排

艾睿:
Do you need a solution for housing discrete wires because a direct socket to board linkage is not functional? Then this 102241-7 discrete wire housing from TE Connectivity is perfect for you! This RCP connector has 9 RCP contacts. It has a maximum voltage rating of 250 VAC. Its pitch is 2.54 mm. This is a 1-row connector. It has a straight body orientation. It has a receptacle type gender. This device has a maximum current rating of 3 A/contact. 102241-7 is housed in black nylon. Its wire is 20-32 AWG. This rectangle connector has an operating temperature of -65 to 105 °C. This product is 22.86 mm long, 4.62 mm tall and 15.24 mm deep.

Allied Electronics:
RECEPTACLE; AMPMODU; MOD IV; 9 POSITION; .100 IN; SINGLE ROW; LATCHED

安富利:
Conn Housing RCP 9 POS 2.54mm Crimp ST Cable Mount

Verical:
Conn Housing RCP 9 POS 2.54mm Crimp ST Cable Mount Black Package

Newark:
# AMP - TE CONNECTIVITY  102241-7  Wire-To-Board Connector, 2.54 mm, 9 Contacts, Receptacle, AMPMODU MOD IV Series, 1 Rows

MASTER:
CONN HOUSING, CRIMP SNAP-IN MOD IV, SINGLE ROW,.100 CENTERS, WITH POLARIZATION AND DETENTS

Powell:
.100 AMPMODU Headers, Housings & Contacts

Online Components:
09 MODIV HSG COMP SR .100 POL

Electro Sonic:
09 MODIV HSG COMP SR .100 POL
