1-640514-0

AMP FROM TE CONNECTIVITY  1-640514-0  绝缘压穿 IDC 连接器

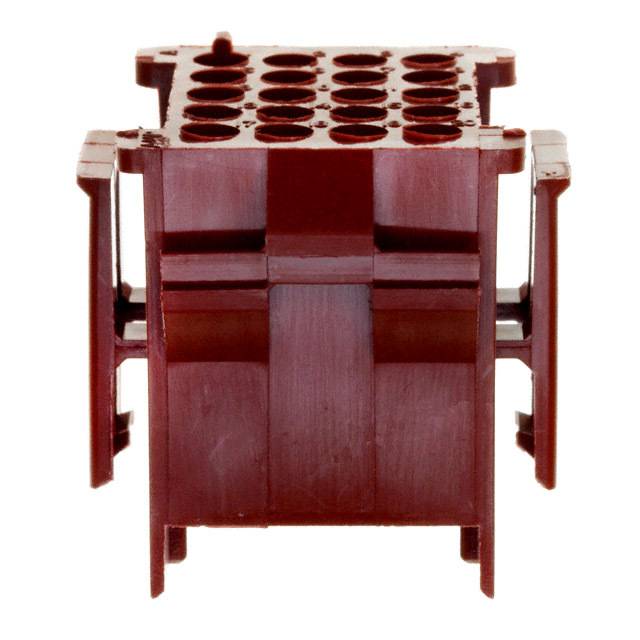

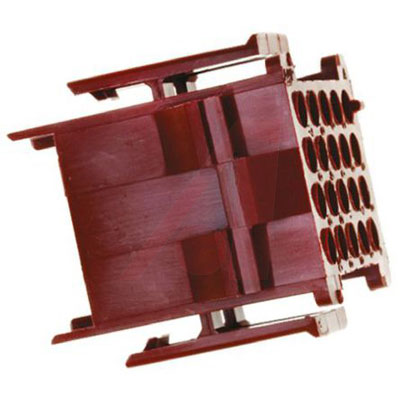

Soft Shell Connector, 250 VAC, 9 A, Nylon Housing, 20 Circuits

The housings are brick red in color UL 94V-0 rated and have 0.165" contact-to-contact spacing. Plugs and caps fit the same mounting hole. Contacts accept 26-18 AWG wire with insulation diameters from 0.025"-0.115". UL recognized File E28476 and CSA certified LR7189 for 250 V and 105°C operation.

Nylon, 94 V-0 rated, brick red.

* Housings Positively Lock to Help Prevent Accidental Disengagement

* Plug and Cap Design Include Molded-In Polarizing Feature for Proper Mating

* Egg Crate Design of Plug-Half Fully Encloses Socket Contacts Reducing Shock Hazard
