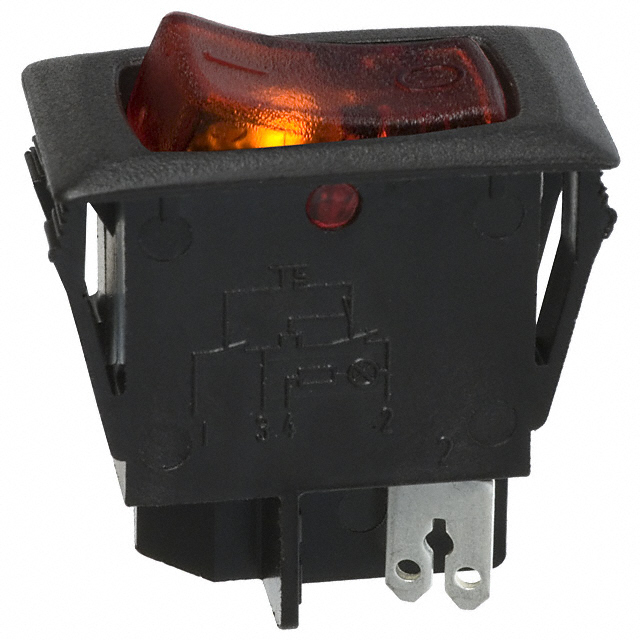

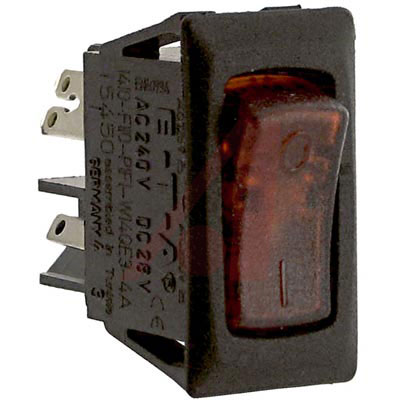

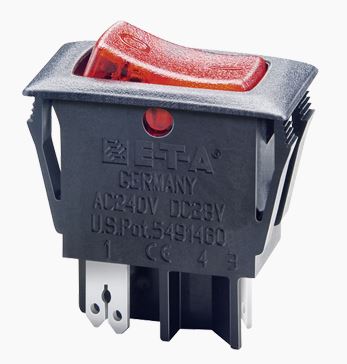

Circuit Breaker; Therm; Rocker; Cur-Rtg 4A; Snap-In Panel; 1Pole; Blade Snap
Miniaturized single pole rocker switch/thermal circuit breaker combining ON/OFF switching and extremely fast overload performance in a single component S-type TO CBE to EN 60934/IEC 934. Under overload conditions an internal neon illuminates to give a clear signal of the tripped status of the mechanism and thereby the cause of power interruption. Alternatively the illumination can be conventionally wired to indicate the ON status of the device. Returning the rocker switch through the OFF position and back ON will reset the mechanism and restore the supply. Complies with CBE standard EN 60934 IEC 60934
**Features:**
* Combines Circuit Protection, ON/OFF Switch All in One Package
* Optional Illumination to Signal Tripped Status of the Mechanism Suffix B
* Optional Illumination to Indicate the ON Status of the Device Suffix E
* Largely Temperature Insensitive
**Specifications:**
* UL and CSA Approved
* Voltage Ratings: 250 VAC, 50 VDC
* Current Ratings: 0.63 Amps to 10 Amps
* Panel Cut-Out: 1.10" × 0.500"
