178323-2

AMP FROM TE CONNECTIVITY  178323-2  线至板连接器, Dynamic D-3100D系列, 6 触点, 针座, 3.81 mm, 通孔安装, 2 排

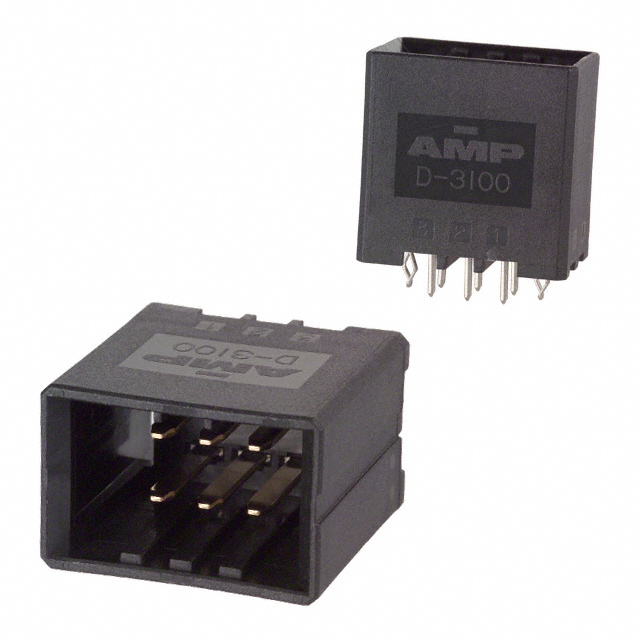

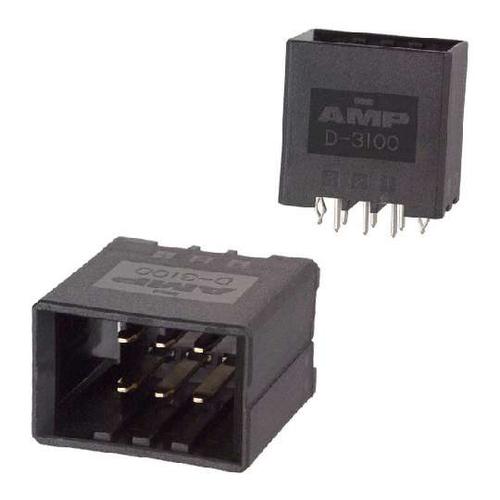

Dynamic D-3100 系列管座

Dynamic 系列的 D-3100 系列管座具有镀锡固定支脚，以提高稳定性。 D-3100 系列管座的印刷电路板焊接尾线为镀锡，触点插片为镀金。 这些 D-3100 系列管座的建议印刷电路板厚度为 1.0 至 1.6mm。

### 注

有关配接的 D-3100 系列外壳，请参见典型库存号 680-1571

得捷:
CONN HEADER VERT 6POS 3.81MM

立创商城:
3.81mm 2x3P 直插

欧时:
TE Connectivity PCB 针座 Dynamic 3000 系列 6路 3.81mm节距 直向 178323-2, 焊接端接, 通孔

贸泽:
集管和线壳 HDR 6 POS VERT 15 AU DUAL

e络盟:
线至板连接器, Dynamic D-3100D系列, 6 触点, 针座, 3.81 mm, 通孔安装, 2 排

艾睿:
Use this 178323-2 power connector from TE Connectivity to connect a power supply to a circuit. This M connector&s;s 6 contacts that are made out of copper alloy and plated with gold over nickel. It has a straight body orientation. It has a maximum voltage rating of 250 VAC. This connector has a single port. Its pitch is 3.81 mm. It has a male type gender. 178323-2 is housed in nylon. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. Its 6 terminals use the solder termination method. This product is 21.62 mm long, 21.6 mm tall and 14.43 mm deep. This power connector has an operating temperature range of -55 °C to 105 °C.

Allied Electronics:
Dynamic 3000 Series, 3.81mm Pitch 6 WayStraight PCB Header, Solder Termination

安富利:
Conn Power M 6 POS 3.81mm Solder ST Thru-Hole 6 Terminal 1 Port Tube

Chip1Stop:
Conn Power M 6 POS 3.81mm Solder ST Thru-Hole 6 Terminal 1 Port Automotive Tube

Verical:
Conn Power M 6 POS 3.81mm Solder ST Thru-Hole 6 Terminal 1 Port Tube

Newark:
# AMP - TE CONNECTIVITY  178323-2  Wire-To-Board Connector, Dynamic D-3100D Series, Through Hole, Header, 6, 3.81 mm

MASTER:
6 pos double row vertical hdr assy for dynamic d-3100

Powell:
Dynamic Series Connectors

Online Components:
6-P POST HDR VERT D-3100D .38

Electro Sonic:
DYNAMIC D3100D HDR V 6P ASSY AU038
