103735-9

AMPMODU 10 位置 单排 垂直 卡钩 IDC 插头

针座 通孔 10 位置 0.100"（2.54mm）

得捷:
CONN HEADER VERT 10POS 2.54MM

贸泽:
集管和线壳 LTCH HDR WO SWAGE 10

艾睿:

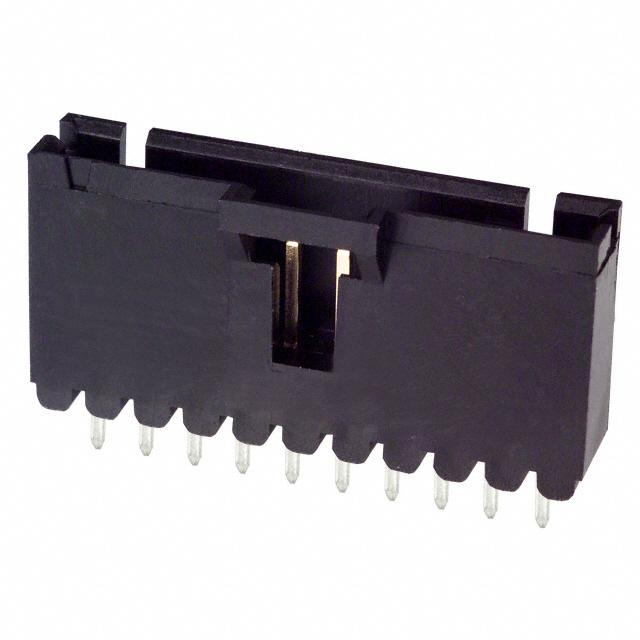

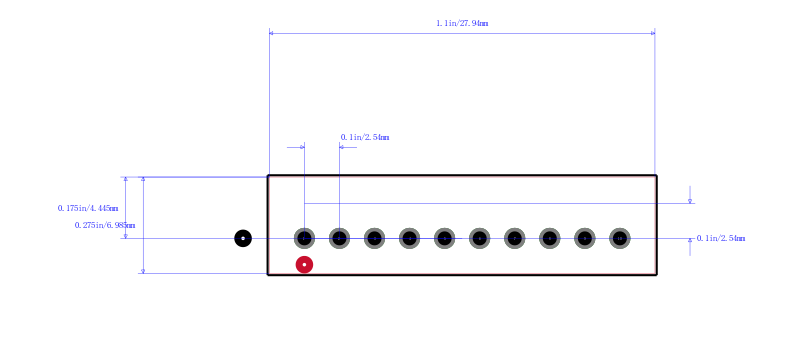

Think of TE Connectivity&s;s shrouded 103735-9 header connector the next time you&s;re concerned about accidentally shorting out pins on your printed circuit. This HDR connector&s;s 10 contacts that are made out of brass and plated with gold over nickel. Its pitch is 2.54 mm. This is a 1-row connector. It has a straight body orientation. It has a header type gender. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. 103735-9 is housed in black thermoplastic. This connector has an operating temperature of -65 to 105 °C. It uses the solder termination method. This product is 27.94 mm long, 13.59 mm tall and 6.98 mm deep.

安富利:
Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tube

MASTER:
HDR ASSY, VERT, SINGLE ROW 2.54[.100]C, 0.64[.025] SQ POST, WITH PLZN & LATCHING

Powell:
.100 AMPMODU Headers, Housings & Contacts

Online Components:
10 MTE HDR SRST LATCH.100CL

Electro Sonic:
10 MTE HDR SRST LATCH.100CL

Win Source:
CONN HEADER VERT 10POS 2.54MM / Connector Header Through Hole 10 position 0.100" 2.54mm
