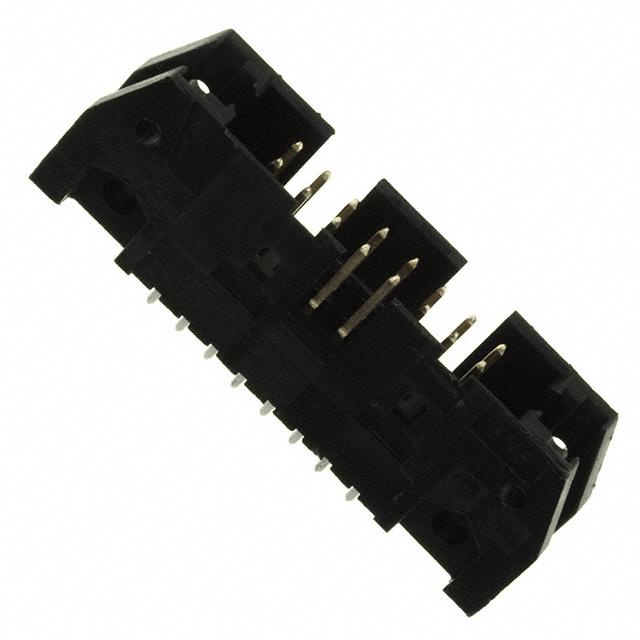

102153-3

集管和线壳 16P HEADER

针座 通孔 16 位置 0.100"（2.54mm）

得捷:
CONN HEADER VERT 16POS 2.54MM

贸泽:
集管和线壳 16P HEADER

艾睿:
Easily mount this ejector 102153-3 header connector from TE Connectivity onto your PCB project to support a variety of physical configuration options. This HDR connector&s;s 16 contacts that are made out of phosphor bronze|brass and plated with gold over palladium nickel|gold over nickel. It has a straight body orientation. It has a header type gender. This is a 2-row connector. Its pitch is 2.54 mm. It has a maximum voltage rating of 250 VAC. This device has a maximum current rating of 1 A/contact. The component will be shipped in tray format. 102153-3 is housed in black thermoplastic. This product is 39.62 mm long, 13.94 mm tall and 8.53 mm deep. It uses the solder termination method. This connector has an operating temperature of -65 to 105 °C.

安富利:
Conn Ejector Header HDR 16 POS 2.54mm Solder ST Thru-Hole

Chip1Stop:
Conn Ejector Header HDR 16 POS 2.54mm Solder ST Thru-Hole Tray

Verical:
Conn Ejector Header HDR 16 POS 2.54mm Solder ST Thru-Hole Tray

MASTER:
HEADER ASSY, UNIVERSAL, AMP-LATCH

Powell:
Pin and Pinless Headers AMP-LATCH

Online Components:
016 UNIV HDR SP 4S 15DP STD

Electro Sonic:
016 UNIV HDR SP 4S 15DP STD
