103309-8

AMP-LATCH 40 位置 通孔 双排 直 薄型 插针 针座

040 LOPRO HDR SP 30DP

Product Highlights

Connector Type = Pin Header

Low Profile

Number of Positions = 40

2.54 x 2.54 mm Centerline, Matrix

PCB Mount Angle = Vertical

得捷:
CONN HEADER VERT 40POS 2.54MM

艾睿:

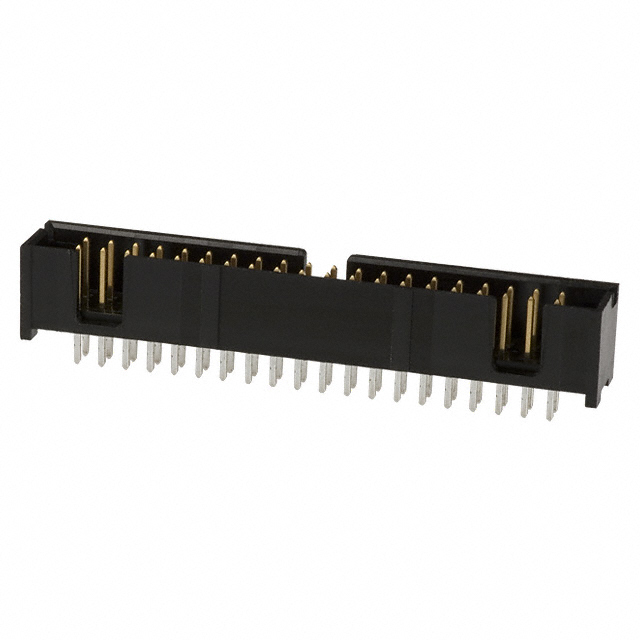

Think of TE Connectivity&s;s shrouded 103309-8 header connector the next time you&s;re concerned about accidentally shorting out pins on your printed circuit. This HDR connector&s;s 40 contacts that are made out of copper alloy and plated with gold over palladium nickel over nickel|gold over nickel. Its pitch is 2.54 mm. This is a 2-row connector. It has a straight body orientation. It has a header type gender. This device has a maximum current rating of 1 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. 103309-8 is housed in black thermoplastic. This product is 58.42 mm long, 9.78 mm tall and 9.14 mm deep. This connector has an operating temperature of -65 to 105 °C.

Jameco:
Connector Shrouded Header 40 Position 2.54mm Solder Straight Thru-Hole

安富利:
Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole Tube

Chip1Stop:
Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole Tube

Verical:
Conn Shrouded Header 4 Sides HDR 40 POS 2.54mm Solder ST Thru-Hole Tube

MASTER:
HEADER ASSY, LOW PROFILE, AMP-LATCH

Powell:
Pin and Pinless Headers AMP-LATCH

Online Components:
040 LOPRO HDR SP 30DP

Electro Sonic:
040 LOPRO HDR SP 30DP
