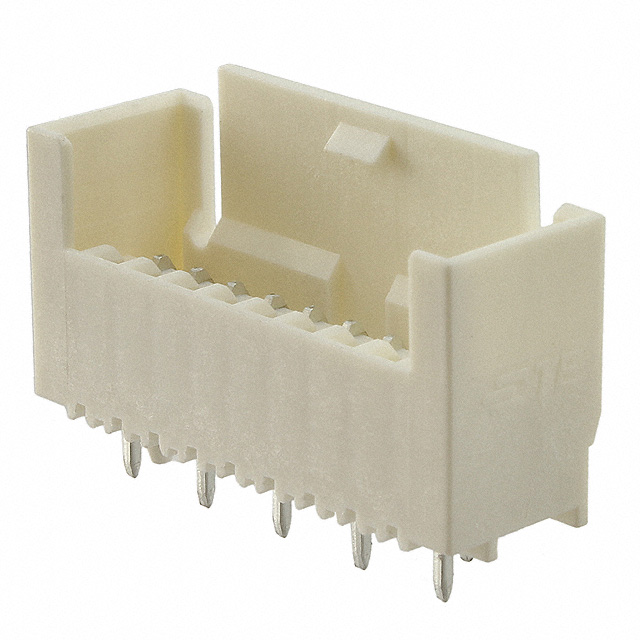

AMP FROM TE CONNECTIVITY 1-1971817-9 连接器, 针座, 9路, 1排, 2.5MM
针座 通孔 9 位置 0.098"(2.50mm)
得捷:
CONN HEADER VERT 9POS 2.5MM
贸泽:
Headers & Wire Housings 9P RAST 2.5 Tab Hdr Ex- Lock T/H Vrt-tin
e络盟:
连接器, 针座, 9路, 1排, 2.5MM
艾睿:
Make strong and binding connections on your circuit boards by adopting this wire to board 1-1971817-9 connector from TE Connectivity. This HDR connector&s;s 9 contacts that are made out of copper alloy and plated with tin over nickel. This is a 1-row connector. It has a header type gender. Its pitch is 2.5 mm. It has a maximum voltage rating of 50 V. It has a straight body orientation. This device has a maximum current rating of 2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. 1-1971817-9 is housed in natural nylon 6/6. This product is 26.7 mm long, 15.5 mm tall and 9.2 mm deep.
Verical:
Conn Wire to Board HDR 9Power POS 2.5mm Solder ST Top Entry Thru-Hole Box/Carton
Newark:
# AMP - TE CONNECTIVITY 1-1971817-9 Wire-To-Board Connector, 2.5 mm, 9 Contacts, Header, RAST 2.5 Series, Through Hole, 1 Rows
MASTER:
Conn Wire to Board HDR 9Power POS 2.5mm Solder ST Top Entry Thru-Hole Box/Carton
Online Components:
9P,RAST 2.5 Tab Header,Ex- Locking,THV
Electro Sonic:
9P,RAST 2.5 Tab Header,Ex- Locking,THV
触点数 9
极性 Male
触点电镀 Tin
额定电流 2 A
绝缘电阻 5000 MΩ
排数 1
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 9
额定电流Max 6A/触头
额定电压Max 50 V
安装方式 Through Hole
高度 15.5 mm
外壳颜色 Natural
颜色 Natural
触点材质 Copper
材质 Nylon
外壳材质 Nylon
产品生命周期 Active
包装方式 Bulk
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
