1-87227-3

2.54mm 圆针

26 MODII HDR DRST UNSHRD .100

Product Highlights

Header

Header Type = Standard

Number of Rows = Dual

Number of Positions = 26

Mating Post Length = 8.08 mm

得捷:
CONN HEADER VERT 26POS 2.54MM

立创商城:
2.54mm 圆针

艾睿:

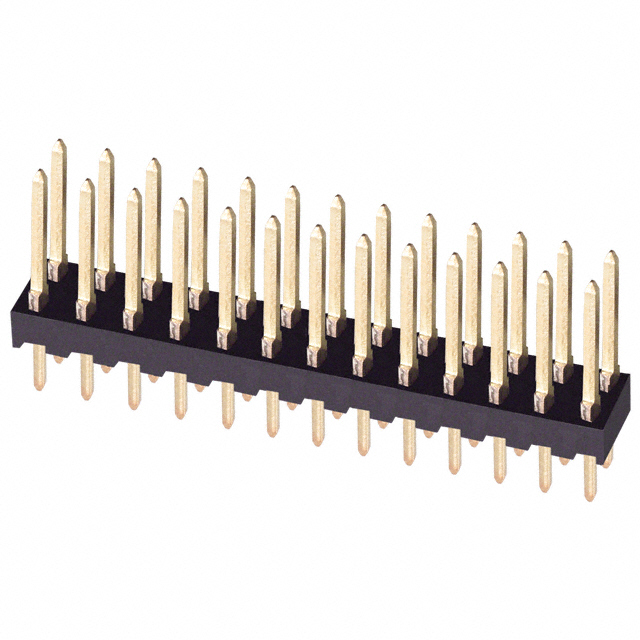

This unshrouded 1-87227-3 header connector from TE Connectivity is used for jumper posts to support physical configuration options on printed circuit boards. This HDR connector&s;s 26 contacts that are made out of copper alloy and plated with gold over nickel. This is a 2-row connector. It has a straight body orientation. Its pitch is 2.54 mm. It has a header type gender. This device has a maximum current rating of 3 A/contact. 1-87227-3 is housed in black thermoplastic. This product is 32.61 mm long, 10.37 mm tall and 5.08 mm deep. This connector has an operating temperature of -65 to 105 °C. It uses the solder termination method.

Jameco:
Connector Unshrouded Header 26 Position 2.54mm Solder Straight Thru-Hole

安富利:
Conn Unshrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole

Chip1Stop:
Conn Unshrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Carton

Verical:
Conn Unshrouded Header M 26 POS 2.54mm Solder ST Top Entry Thru-Hole Carton

Newark:
Board-To-Board Connector, 2.54 mm, 26 Contacts, Header, AMPMODU Mod II Series, Through Hole, 2 Rows

MASTER:
ASSEMBLY, MOD II, HEADER, DOUBLE ROW, .100 X .100 CL. VERTICAL, .025 SQUARE POSTS

Powell:
.100 inch AMPMODU Headers

Online Components:
26 MODII HDR DRST UNSHRD .100

Electro Sonic:
26 MODII HDR DRST UNSHRD .100
