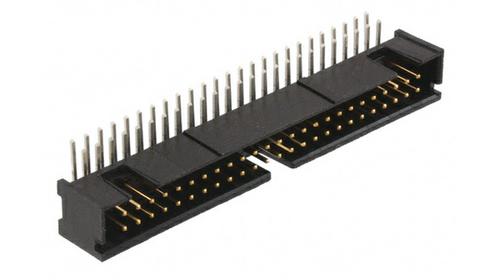

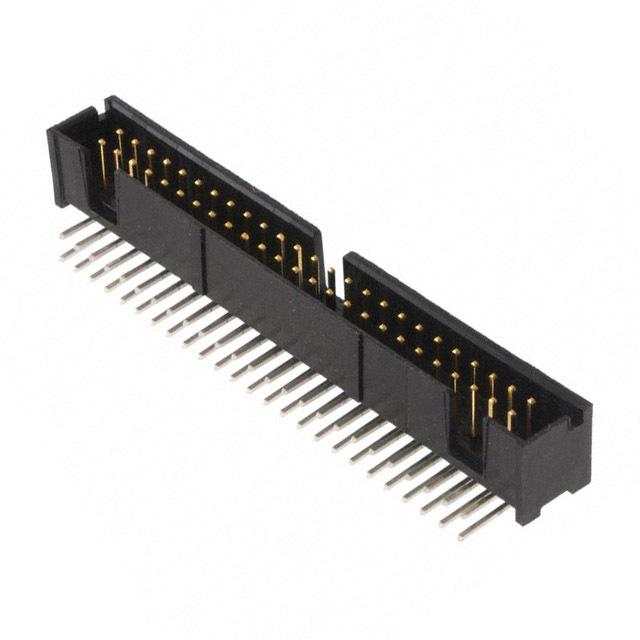

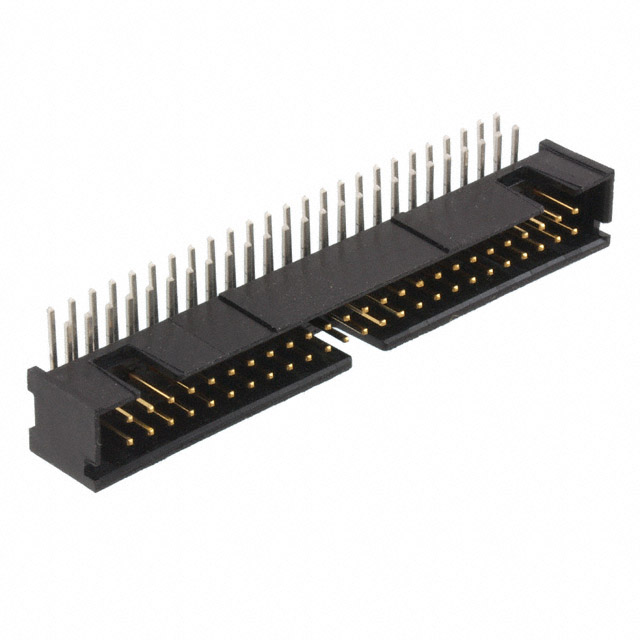

1-5103311-0

集管和线壳 HDR R.A. DOUBLE 50P

针座 通孔，直角 50 位置 0.100"（2.54mm）

得捷:
CONN HEADER R/A 50POS 2.54MM

贸泽:
集管和线壳 HDR R.A. DOUBLE 50P

艾睿:
As an added safety precaution, the shrouded 1-5103311-0 header connector from TE Connectivity will prevent and protect components on your circuit board from accidentally touching each other. This HDR connector&s;s 50 contacts that are made out of brass and plated with gold over palladium nickel over nickel|gold over nickel. It has a maximum voltage rating of 250 VAC. Its pitch is 2.54 mm. It has a header type gender. This is a 2-row connector. It has a right angle body orientation. This device has a maximum current rating of 1 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. 1-5103311-0 is housed in black polybutylene terephthalate|nylon. It uses the solder termination method. This product is 71.12 mm long, 9.14 mm tall and 12.39 mm deep. This connector has an operating temperature of -65 to 105 °C.

安富利:
Conn Shrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole

Chip1Stop:
Conn Shrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole

Verical:
Conn Shrouded Header 4 Sides HDR 50 POS 2.54mm Solder RA Thru-Hole Tube

MASTER:
HEADER ASSY, RIGHT ANGLE, LOW PROFILE, AMP-LATCH

Powell:
Headers & Wire Housings HDR R.A. DOUBLE 50P

Online Components:
A/L LOW PRO HDR 50P RA BLACK

Electro Sonic:
A/L LOW PRO HDR 50P RA BLACK
