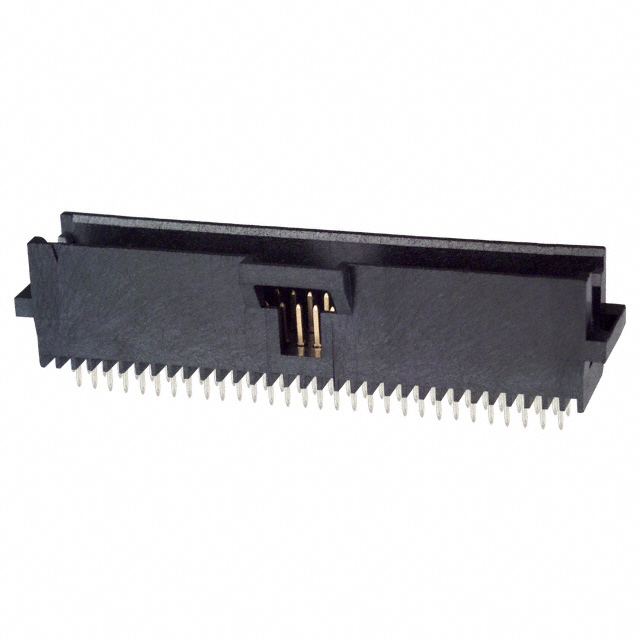

板对板与夹层连接器 60 SYS 50 DRST SHRD
针座 通孔 60 位置 0.050"(1.27mm)
得捷:
CONN HEADER VERT 60POS 1.27MM
贸泽:
板对板与夹层连接器 60 SYS 50 DRST SHRD
艾睿:
Protect your printed circuit boards from accidental damages with TE Connectivity&s;s shrouded 104068-6 header connector. This HDR connector&s;s 60 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. Its pitch is 1.27 mm. It has a straight body orientation. This is a 2-row connector. It has a maximum voltage rating of 30 VAC. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 44.3 mm long, 9.9 mm tall and 8.73 mm deep. This connector has an operating temperature of -65 to 105 °C. It uses the solder termination method. 104068-6 is housed in black thermoplastic.
安富利:
Conn Shrouded Header HDR 60 POS 1.27mm Solder ST Thru-Hole Tube
Verical:
Conn Shrouded Header HDR 60 POS 1.27mm Solder ST Thru-Hole Box/Tube
Newark:
# AMP - TE CONNECTIVITY 104068-6 60 SYSTEM 50 HDR DRST SHRD New
MASTER:
60 SYSTEM 50 HDR DRST SHRD
Powell:
.050 X .100 AMPMODU System 50
Online Components:
60 SYSTEM 50 HDR DRST SHRD
GOPHER:
Header Connector 60 POSITION PCB MOUNT VERTICAL THRU HO 30U GOLD/BRONZE DUAL ROW
Electro Sonic:
60 SYSTEM 50 HDR DRST SHRD
Win Source:
CONN HEADER VERT 60POS 1.27MM / Connector Header Through Hole 60 position 0.050" 1.27mm
触点数 60
触点电镀 Tin Lead, Gold
排数 2
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 60
安装角度 180 °
额定电流Max 1A/触头
工作温度Max 105 ℃
工作温度Min -65 ℃
额定电压Max 30 VAC
额定电压 30 VAC
安装方式 Through Hole
引脚间距 1.27 mm
长度 41.4 mm
宽度 8.74 mm
高度 9.9 mm
引脚间距 1.27 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -65℃ ~ 105℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Tube
制造应用 汽车,通用,医疗,电信
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
104068-6 TE Connectivity 泰科 | 当前型号 | 当前型号 |
5-104068-6 泰科 | 功能相似 | 104068-6和5-104068-6的区别 |
