1-5102153-3

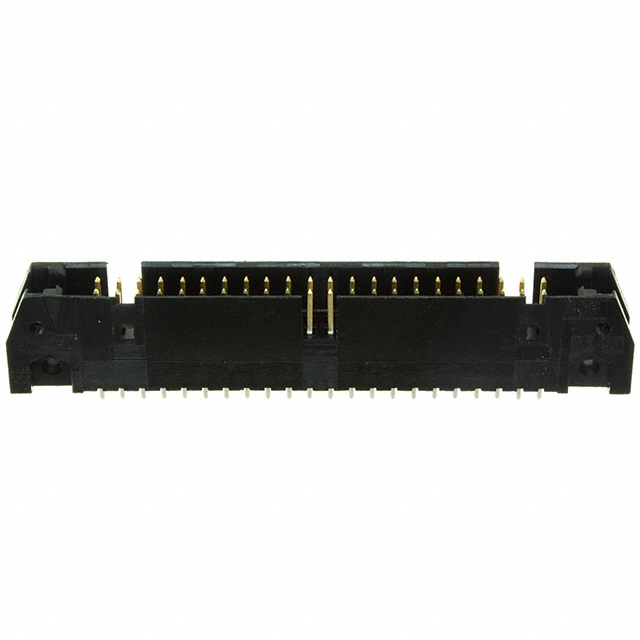

AMP FROM TE CONNECTIVITY 1-5102153-3 Wire-To-Board Connector, 44Contacts, Header, 2.54mm, Through Hole, 2Rows

针座 通孔 44 位置 0.100"（2.54mm）

得捷:
CONN HEADER VERT 44POS 2.54MM

贸泽:
Headers & Wire Housings UNIV HDR 44P VERT

艾睿:
Use this ejector 1-5102153-3 connector from TE Connectivity when board-to-board interconnects is required. This HDR connector&s;s 44 contacts that are made out of phosphor bronze|brass and plated with gold over palladium nickel|gold over nickel. Its pitch is 2.54 mm. It has a straight body orientation. It has a header type gender. This is a 2-row connector. It has a maximum voltage rating of 250 VAC. This device has a maximum current rating of 1 A/contact. This connector has an operating temperature of -65 to 105 °C. It uses the solder termination method. 1-5102153-3 is housed in black nylon|polyester. This product is 75.18 mm long, 13.94 mm tall and 8.53 mm deep.

安富利:
Conn Ejector Header HDR 44 POS 2.54mm Solder ST Thru-Hole

Chip1Stop:
Conn Ejector Header HDR 44 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Ejector Header HDR 44 POS 2.54mm Solder ST Thru-Hole Package

Newark:
# AMP - TE CONNECTIVITY  1-5102153-3  A/L UNIV HDR 44P VERT New

MASTER:
Conn Ejector Header HDR 44 POS 2.54mm Solder ST Thru-Hole Package

Powell:
Pin and Pinless Headers AMP-LATCH

Online Components:
A/L UNIV HDR 44P VERT

Electro Sonic:
A/L UNIV HDR 44P VERT
