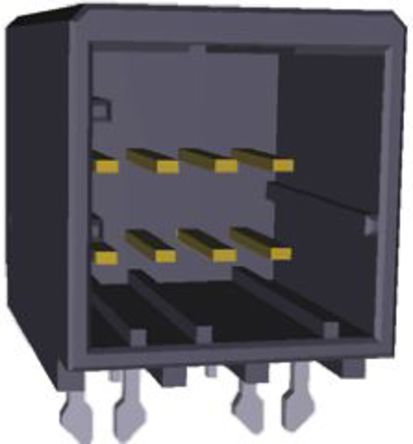

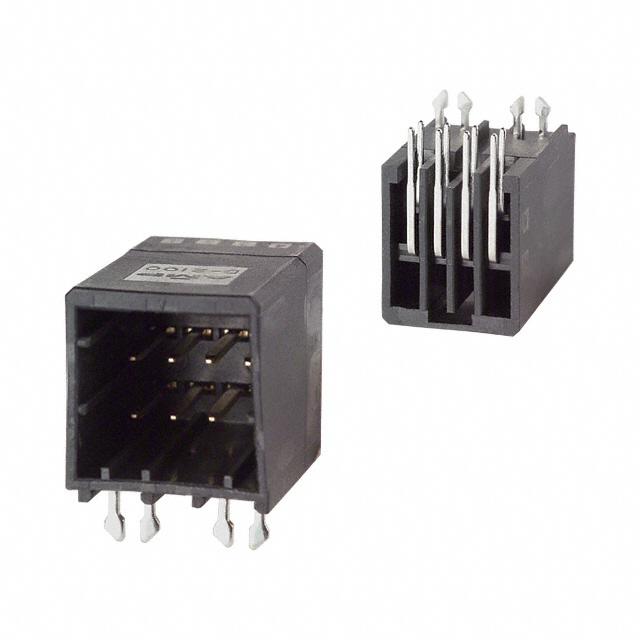

Dynamic 2100 管座TE Connectivity 动态系列的 D-2100 系列管座具有镀锡固定支脚,以提高稳定性。 D-2100 系列管座的印刷电路板焊接尾线为镀锡,触点插片为镀金。 这些 D-2100 系列管座的建议印刷电路板厚度为 1.6mm。### 注有关匹配的 D-2100 系列外壳,请参见典型库存号 719-0135。### TE Connectivity Dynamic 2000 系列D-2000 系列连接器主要适合信号应用,包括键接系统以防止错配。 这些 D-2100 系列连接器具有 2.5mm 节距,最高额定电压为 250V 交流,最大额定电流为 5A,两个额定值均取决于使用的路数和导线规格。
Dynamic 2100 管座
动态系列的 D-2100 系列管座具有镀锡固定支脚,以提高稳定性。 D-2100 系列管座的印刷电路板焊接尾线为镀锡,触点插片为镀金。 这些 D-2100 系列管座的建议印刷电路板厚度为 1.6mm。
### 注
有关匹配的 D-2100 系列外壳,请参见典型库存号 719-0135。
得捷:
CONN HEADER R/A 8POS 2.5MM
欧时:
Header horiz 8w 2row TAB 2.5mm Y key D-2
贸泽:
集管和线壳 D-2100 HDR R/A 8P KEY Y
艾睿:
Easily connect a power supply to a circuit with this 1376009-2 power connector from TE Connectivity. This HDR connector&s;s 8 contacts that are made out of copper alloy and plated with gold over nickel. It has a maximum voltage rating of 250 VDC|250VAC. Its pitch is 2.5 mm. This connector has a single port. It has a header type gender. It has a right angle body orientation. 1376009-2 is housed in polyester. This device has a maximum current rating of 4.5 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This power connector has an operating temperature range of -55 °C to 105 °C. This product is 12.7 mm long, 14.7 mm tall and 20.19 mm deep. Its 8 terminals use the solder termination method.
Allied Electronics:
Header horiz 8w 2row TAB 2.5mm Y key D-2
安富利:
Conn Power HDR 8 POS 2.5mm Solder RA Thru-Hole 8 Terminal 1 Port Tube
Chip1Stop:
Conn Power HDR 8 POS 2.5mm Solder RA Thru-Hole 8 Terminal 1 Port Tube
Powell:
Dynamic Series Connectors
触点数 8
极性 Male
触点电镀 Tin
额定电流 5 A
排数 2
方向 Right Angle
易燃性等级 UL 94 V-0
针脚数 8
安装角度 90.0 °
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 250 VAC
安装方式 Through Hole
封装 -
引脚间距 2.50 mm
长度 12.7 mm
宽度 20.19 mm
高度 14.7 mm
封装 -
引脚间距 2.50 mm
外壳颜色 Black
颜色 Black
触点材质 Copper Alloy
工作温度 -55℃ ~ 105℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Bulk
制造应用 通用,工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
