1-178316-2

AMP FROM TE CONNECTIVITY  1-178316-2  线至板连接器, Dynamic D-3100S系列, 6 触点, 针座, 3.81 mm, 通孔安装, 1 排

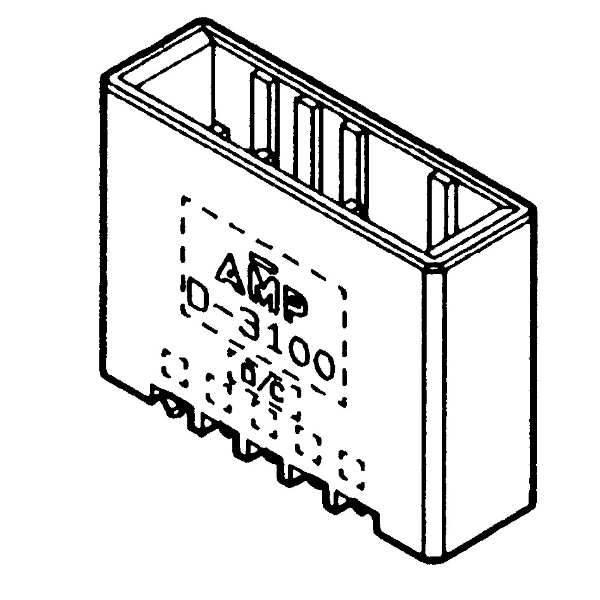

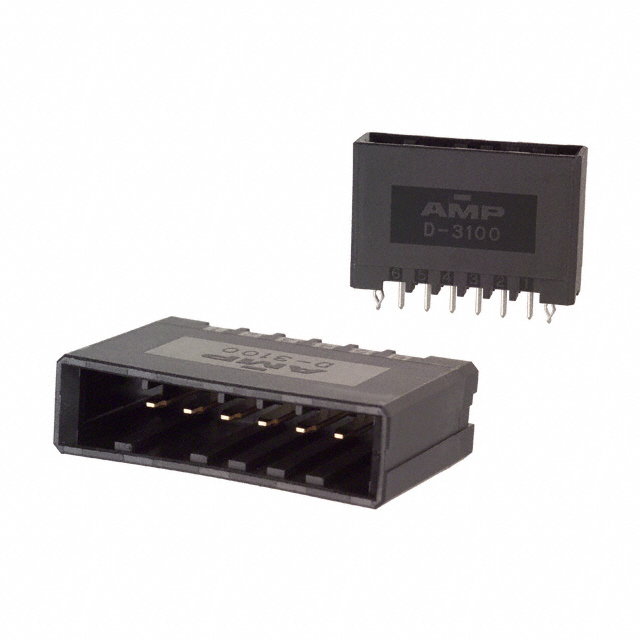

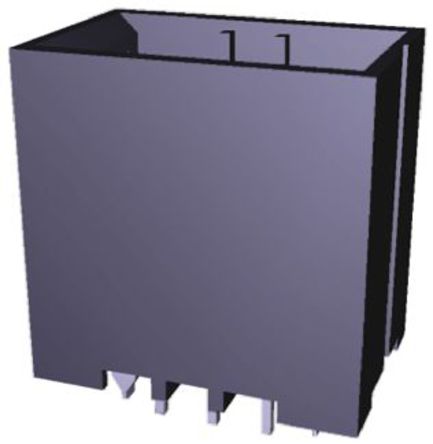

Dynamic D-3100 系列管座

Dynamic 系列的 D-3100 系列管座具有镀锡固定支脚，以提高稳定性。 D-3100 系列管座的印刷电路板焊接尾线为镀锡，触点插片为镀金。 这些 D-3100 系列管座的建议印刷电路板厚度为 1.0 至 1.6mm。

### 注

有关配接的 D-3100 系列外壳，请参见典型库存号 680-1571

得捷:
CONN HEADER VERT 6POS 3.81MM

欧时:
Header vert 6 way TAB 3.81mm X key D-3

立创商城:

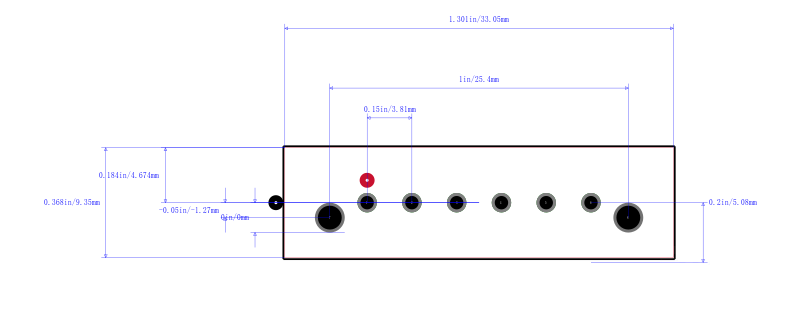

3.81mm 1x6P 直插

e络盟:
线至板连接器, Dynamic D-3100S系列, 6 触点, 针座, 3.81 mm, 通孔安装, 1 排

艾睿:
Easily connect a power supply to a circuit with this 1-178316-2 power connector from TE Connectivity. This M connector&s;s 6 contacts that are made out of copper alloy and plated with gold over nickel. This connector has a single port. Its pitch is 3.81 mm. It has a male type gender. It has a straight body orientation. It has a maximum voltage rating of 250 VAC. 1-178316-2 is housed in polyester. This device has a maximum current rating of 10 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This power connector has an operating temperature range of -55 °C to 105 °C. Its 6 terminals use the solder termination method. This product is 33.05 mm long, 21.6 mm tall and 9.35 mm deep.

安富利:
Conn Power M 6 POS 3.81mm Solder ST Thru-Hole 6 Terminal 1 Port Tube

Chip1Stop:
Conn Power M 6 POS 3.81mm Solder ST Thru-Hole 6 Terminal 1 Port Tube

Verical:
Conn Power M 6 POS 3.81mm Solder ST Thru-Hole 6 Terminal 1 Port Tube

Newark:
# AMP - TE CONNECTIVITY  1-178316-2  Wire-To-Board Connector, Dynamic D-3100S Series, Through Hole, Header, 6, 3.81 mm

MASTER:
6 POS SINGLE ROW VERTICAL HDR ASS"Y FOR DYNAMIC 3100

Powell:
Dynamic Series Connectors

Online Components:
DYNAMIC 3100 HDR ASSY 6P V K/X

Electro Sonic:
DYNAMIC 3100 HDR ASSY 6P V K/X
