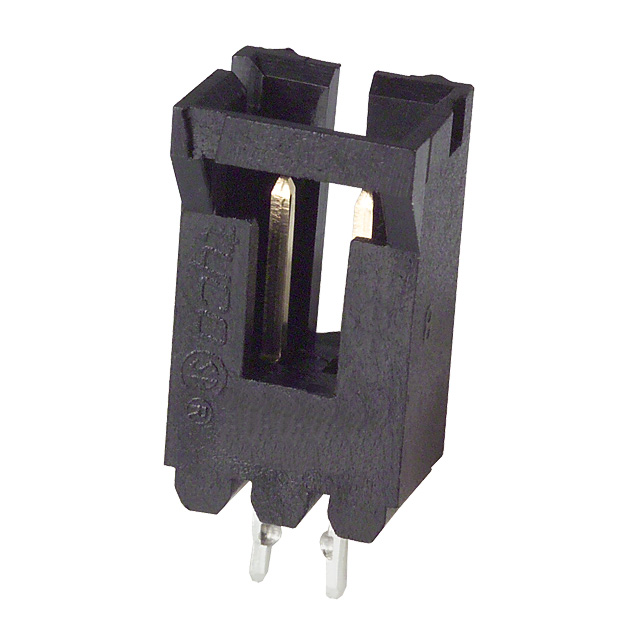

AMP - TE CONNECTIVITY 103908-1 Wire-To-Board Connector, 2.54mm, 2Contacts, Header, AMPMODU MTE Series, Through Hole, 1Rows

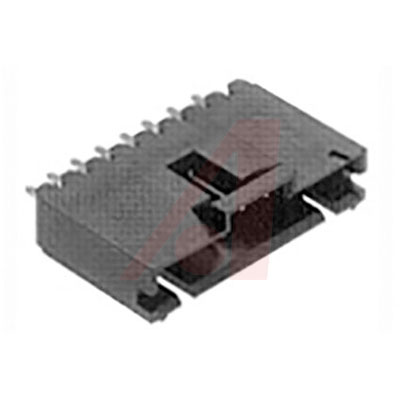

** AMPMODU MTE Polarized/Latching 2.54mm PCB Headers**

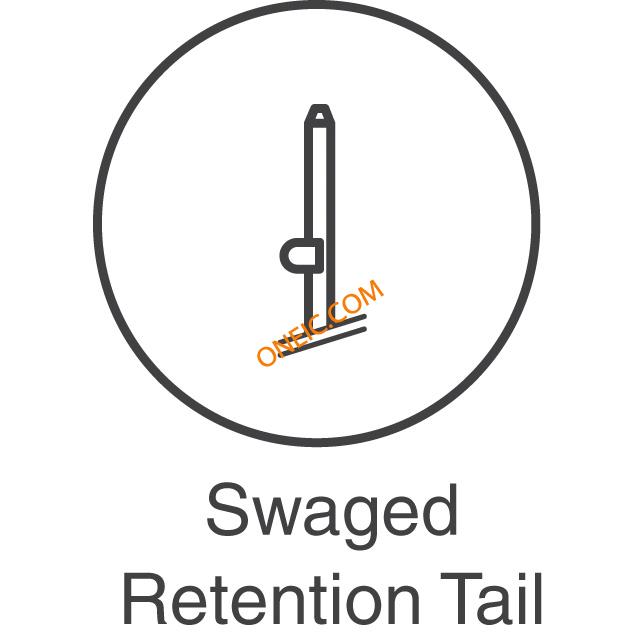

AMPMODU MTE polarized/latching single row PCB headers with a 2.54mm centerline. These AMPMODU MTE polarized/latching PCB headers have integral latching to provide positive retention between the header and receptacle housing, IDC contacts with 0.64mm square posts and an optional swaged tail feature which helps prevent the connector moving before flow soldering. Part numbers X-103908-X have 0.00076μm duplex gold plating on the contact area and swaged tail Part numbers X-104362-X have 0.00038μm duplex gold plating on the contact area and swaged tail Part numbers X-103669-X have 0.00254μm tin plating on entire contact and a swaged tail Part numbers X-103735-X have 0.00076μm duplex gold plating on the contact area Part numbers X-104363-X, X-103638-X, X-103670-X and X-104910-X have 0.00038μm duplex gold plating on the contact area Part numbers X-103639-X have 0.00254μm tin plating on entire contact
触点数 2
极性 Male
触点电镀 Tin Lead
额定电流 3 A
绝缘电阻 5000 MΩ
排数 1
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 2
安装角度 180 °
触点额定电流 3.00 A
额定电流Max 3A/触头
接触电阻Max 15 mΩ
安装方式 Through Hole
封装 -
引脚间距 2.54 mm
长度 7.62 mm

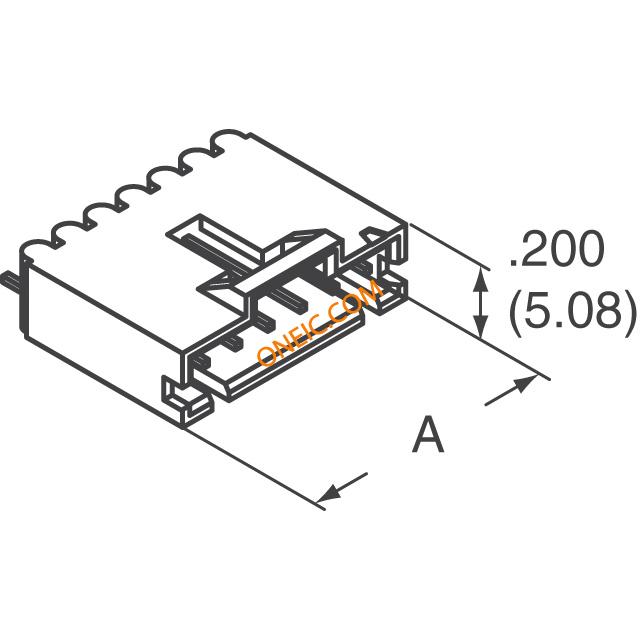

宽度 5.08 mm
高度 13.58 mm
封装 -
引脚间距 2.54 mm
外壳颜色 Black
颜色 Black
触点材质 Brass
工作温度 -65℃ ~ 105℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Tube
制造应用 汽车,通用,医疗,电信
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536694040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
103908-1 TE Connectivity 泰科 | 当前型号 | 当前型号 |
5-103908-1 泰科 | 类似代替 | 103908-1和5-103908-1的区别 |
