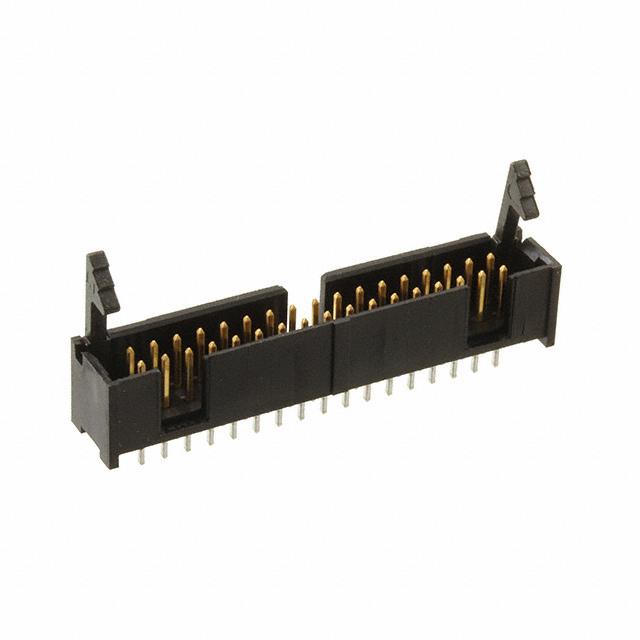

104313-6

AMP-LATCH 34 位置 通孔 直 薄型 插针 针座

针座 通孔 34 位置 0.100"（2.54mm）

得捷:
CONN HEADER VERT 34POS 2.54MM

艾睿:
Are you looking for a solution to support physical configuration options on your PCB? Then mount this ejector 104313-6 header connector from TE Connectivity on your PCB today! This HDR connector&s;s 34 contacts that are made out of copper alloy and plated with gold over palladium nickel over nickel|gold over nickel. Its pitch is 2.54 mm. This is a 2-row connector. It has a header type gender. It has a straight body orientation. This device has a maximum current rating of 1 A/contact. The component will be shipped in tray format. This product is 50.8 mm long, 19.53 mm tall and 9.14 mm deep. It uses the solder termination method. This connector has an operating temperature of -65 to 105 °C. 104313-6 is housed in black thermoplastic.

Jameco:
Connector Ejector Header 34 Position 2.54 mm Solder Straight Thru-Hole Automotive

安富利:
Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole

Chip1Stop:
Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Automotive

Verical:
Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Automotive Tray

MASTER:
HEADER ASSY, LOW PROFILE, AMP-LATCH

Powell:
Pin and Pinless Headers AMP-LATCH

Online Components:
034 LOPRO HDR SP 30DP LATCH

Electro Sonic:
034 LOPRO HDR SP 30DP LATCH
