1-770178-1

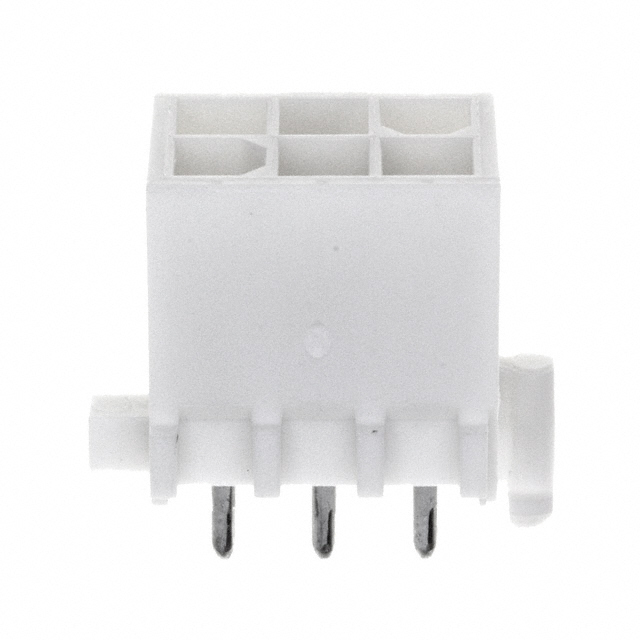

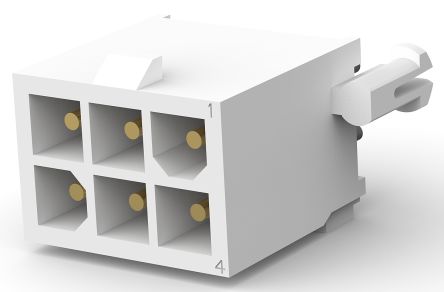

PCB Mounting HousingMale contacts Rated at 600V 9.5A Self latching with appropriate plug Typically Stock No.483-8556 尺寸 --- 电路数量 | 尺寸 mm |     | A | B 2 | 9.8 | 5.6 3 | 14 | 5.6 4 | 9.8 | 9.8 6 | 14 | 9.8 8 | 18 | 9.8 9 | 14 | 14 12 | 18.1 | 14 15 | 22.3 | 14 20 | 43 | 9.8 ### TE Connectivity 微型通用 MATE-N-LOK™ 系列基于 Mate-N-Lok 系列，设计用于各种高保真设备以至汽车或任何需要高空间利用率的应用允许公和母触点用于一个外壳中 极化外壳

印刷电路板安装外壳

插入式触点

额定值为 600V 9.5A

采用合适的插头（典型库存号 483-8556）自闭锁

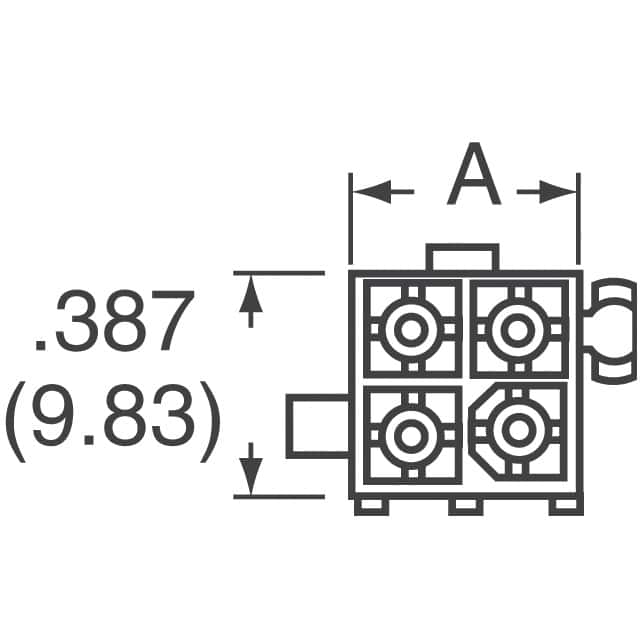

尺寸

---

电路数量 | 尺寸 mm |

  | A | B

2 | 9.8 | 5.6

3 | 14 | 5.6

4 | 9.8 | 9.8

6 | 14 | 9.8

8 | 18 | 9.8

9 | 14 | 14

12 | 18.1 | 14

15 | 22.3 | 14

20 | 43 | 9.8

得捷:
CONN HEADER VERT 6POS 4.14MM

欧时:
TE Connectivity PCB 针座 Mini-Universal Mate-N-Lok 系列 6路 4.14mm节距 直向 1-770178-1, 焊接端接, 9.5A

立创商城:
4.14mm 2x3P

贸泽:
管脚和插座连接器 HEADER 6 POS GOLD DUAL ROW

艾睿:
This robust 1-770178-1 power connector from TE Connectivity easily retains normal operation in harsh and stressful environments. This HDR connector&s;s 6 contacts that are made out of brass and plated with gold over nickel. This connector has a single port. It has a header type gender. Its pitch is 4.14 mm. It has a maximum voltage rating of 600 VAC. It has a straight body orientation. This device has a maximum current rating of 9.5 A/contact. 1-770178-1 is housed in nylon. It uses the solder termination method. This product is 11.89 mm tall and 19.15 mm deep with a diameter of 14.25 mm.

Allied Electronics:
HEADER, PIN, MINI-UNIVERSAL MATE-N-LOK, 6 POSITION, PCB MOUNT, DETENT LOCK

Jameco:
Connector Power Header 6 Position 4.14mm Solder Straight Through Hole 1 Port

安富利:
Conn Power HDR 6 POS 4.14mm Solder ST Thru-Hole 1 Port

Chip1Stop:
Conn Power HDR 6 POS 4.14mm Solder ST Thru-Hole 1 Port Bag

Verical:
Conn Power HDR 6 POS 4.14mm Solder ST Thru-Hole 6 Terminal 1 Port Bag

Newark:
# AMP - TE CONNECTIVITY  1-770178-1  Wire-To-Board Connector, 4.14 mm, 6 Contacts, Plug, Mini Universal MATE-N-LOK Series, Through Hole

MASTER:
Connector Header Through Hole 6 position 0.163" 4.14mm

Powell:
.163" Centerline, 600 V, 9.5 A max.

Online Components:
06P MINI UMNL ASSY VO SNAU LF

Electro Sonic:
Connector Header Through Hole 6 position 0.163" 4.14mm
