4 位置 排数=1 插接类型=针座 连接器类型=压接、贴装
CT BOX HDR H SMT 4P O/TAPE NAT
Product Highlights
Connector
Connector Type = Crimp, MT Mass Termination
Mating Type = Header
Number of Positions = 4
Number of Rows = 1
得捷:
CONN HEADER SMD R/A 4POS 2MM
立创商城:
1-292173-4
艾睿:

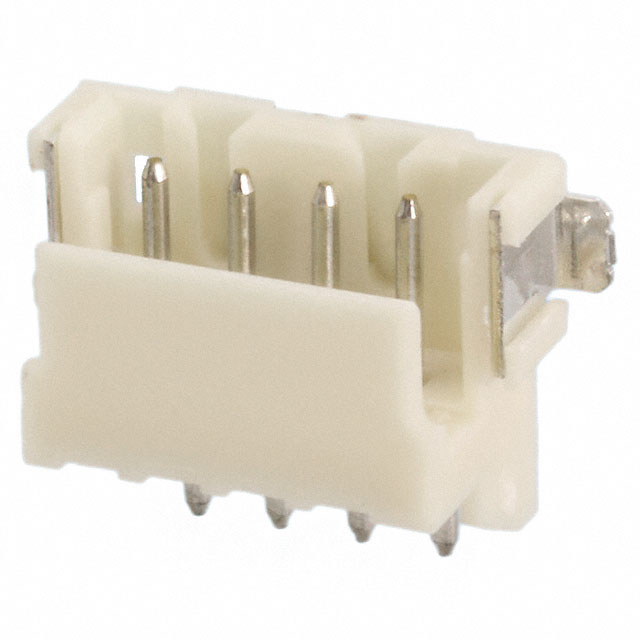

Safety is an important concern when designing electronic devices. TE Connectivity&s;s shrouded 1-292173-4 header connector helps protect your equipment from accidental shortages. This HDR connector&s;s 4 contacts that are made out of brass and plated with tin. It has a header type gender. This is a 1-row connector. It has a right angle body orientation. Its pitch is 2 mm. It has a maximum voltage rating of 125 VDC|125VAC. This device has a maximum current rating of 2 A/contact. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This connector has an operating temperature of -30 to 105 °C. 1-292173-4 is housed in natural polyphenylene sulfide. It uses the solder termination method. This product is 11.6 mm long, 5.8 mm tall and 10.4 mm deep.
安富利:
Conn Shrouded Header HDR 4 POS 2mm Solder RA SMD Embossed T/R
Chip1Stop:
Conn Shrouded Header HDR 4 POS 2mm Solder RA SMD Embossed T/R
Verical:
Conn Shrouded Header HDR 4 POS 2mm Solder RA SMD T/R
Newark:
# AMP - TE CONNECTIVITY 1-292173-4 CT BOX HDR H SMT 4P O/TAPE NAT New
MASTER:
SMT TYPE POST HDR ASS"Y H WITH BOSS &TAIL; TYPE TE CT CONN. 2mm PITCH
Powell:
2mm AMP CT
Online Components:
CT BOX HDR H SMT 4P O/TAPE NAT
Electro Sonic:
CT BOX HDR H SMT 4P O/TAPE NAT
触点数 4
触点电镀 Tin
排数 1
方向 Right Angle
易燃性等级 UL 94 V-0
针脚数 4
额定电流Max 2A/触头
工作温度Max 105 ℃
工作温度Min -30 ℃
额定电压 125 VAC
接触电阻Max 20 mΩ
安装方式 Surface Mount
封装 -
长度 11.6 mm
宽度 7.45 mm
高度 5.8 mm
封装 -
外壳颜色 Natural
颜色 Natural
触点材质 Brass
工作温度 -30℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
