178326-2

AMP FROM TE CONNECTIVITY  178326-2  线至板连接器, Dynamic D-3100D系列, 12 触点, 针座, 3.81 mm, 通孔安装, 2 排

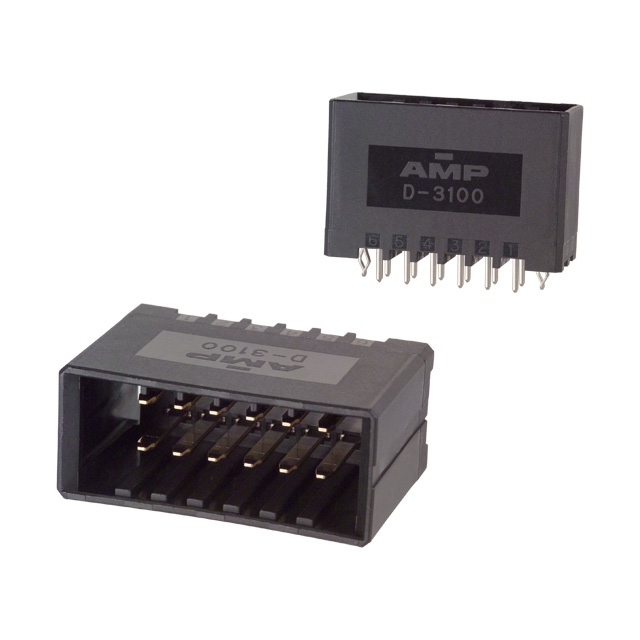

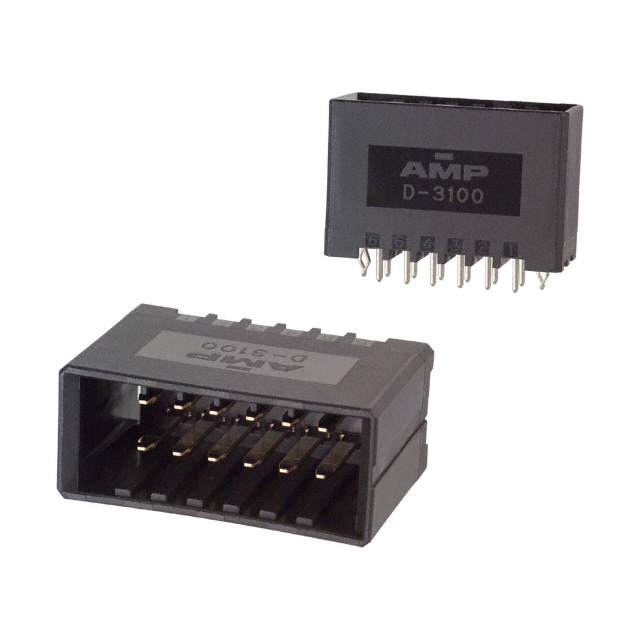

Dynamic D-3100 系列管座

Dynamic 系列的 D-3100 系列管座具有镀锡固定支脚，以提高稳定性。 D-3100 系列管座的印刷电路板焊接尾线为镀锡，触点插片为镀金。 这些 D-3100 系列管座的建议印刷电路板厚度为 1.0 至 1.6mm。

### 注

有关配接的 D-3100 系列外壳，请参见典型库存号 680-1571

### Tyco 动态 3000 系列

得捷:
CONN HEADER VERT 12POS 3.81MM

欧时:
D-3000系列 大负荷电源连接器 12

立创商城:
178326-2

e络盟:
线至板连接器, 3.81 mm, 12 触点, 针座, Dynamic D-3100D Series, 通孔安装, 2 排

艾睿:
Are you looking for a solution to connecting a circuit to a power supply? Then use this 178326-2 power connector from TE Connectivity for a secure connection! This M connector&s;s 12 contacts that are made out of copper alloy and plated with gold over nickel. It has a male type gender. It has a maximum voltage rating of 250 VAC. Its pitch is 3.81 mm. It has a straight body orientation. This connector has a single port. 178326-2 is housed in nylon. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. Its 12 terminals use the solder termination method. This product is 33.05 mm long, 21.6 mm tall and 14.43 mm deep. This power connector has an operating temperature range of -55 °C to 105 °C.

Allied Electronics:
Dynamic 3000 Series, 3.81mm Pitch 12 Way Straight PCB Header, Solder Termination

安富利:
Conn Power M 12 POS 3.81mm Solder ST Thru-Hole 12 Terminal 1 Port Tube

Chip1Stop:
Conn Power M 12 POS 3.81mm Solder ST Thru-Hole 12 Terminal 1 Port Tube

Verical:
Conn M 12 POS 3.81mm Solder ST Thru-Hole 12 Terminal 1 Port

Newark:
# AMP - TE CONNECTIVITY  178326-2  Wire-To-Board Connector, Dynamic D-3100D Series, Through Hole, Header, 12, 3.81 mm

MASTER:
DYNAMIC DBL ROW HDR ASSY 12P V

Powell:
Dynamic Series Connectors

Online Components:
DYNAMIC DBL ROW HDR ASSY 12P V

Electro Sonic:
DYNAMIC DBL ROW HDR ASSY 12P V
